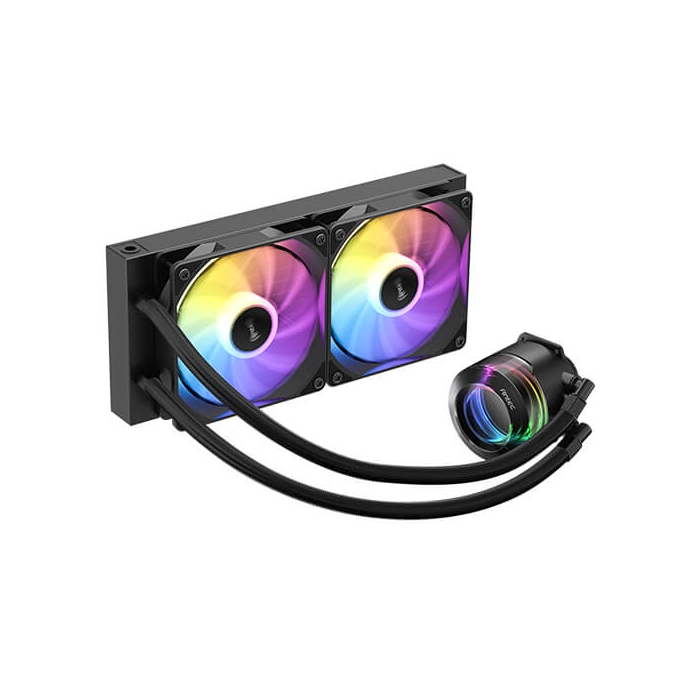

The suspended spiral pump head inspired by the image of a vortex provides outstanding cooling performance and various lighting effects from different angles.
Massive Copper Base Plate
Provides highly efficient cooling at all loads.
The elastic and durable EPDM high-density tubing makes the minimal evaporation of liquid.
Massive 13 fins dissipate heat rapidly.
Comes with powerful 120 mm ARGB PWM radiator fans, providing practical functionality and strong cooling performance.
800 ± 200 ~ 1800 ± 10% RPM
Airflow: 71.5 CFM
Noise Level: 31 dB(A)
Air Pressure: 2.45 mmH2O
The included ARGB controller works with the motherboard, customizing each individual LED in colour and effect.
Lighting Effect Switch Connector: Connected to the reset or LED control button on the PC case to turn it into Mode button.
ARGB Connector: Connect it to the motherboard for lighting effects in sync.
ARGB Headers: Connected to the fan's ARGB connector. Each header supports up to 48 LEDs, 120 LEDs for 4 headers in total.
Mode Control: Long press for 3 seconds to switch to motherboard control and single press for switching back to the button control.
SATA Connector: Connect it to the SATA connector of the power supply.
AMD: AM3/AM4/AM5
Intel: LGA 115X/1200/1700/1851/20XX
| Is Discontinued | No |
|---|---|
| SKU | ANTEC-AIO-VORTEX-LUM-240-ARGB-B |
| Brand | Antec |
| UPC/EAN | 0761345400541 |
| Radiator Dimensions | 277 x 120 x 27 mm |
| Radiator Material |
Aluminium |
| Pump Dimensions |
￠67 x 48.5 mm |
| Rating Voltage |
DC 12 V |
| Minimum Start-up Voltage |
≥ 5.0 V |
| Fan Speed | 2800±10% RPM |
| Rated Current |
0.25±20% A |
| Consumed Power |
3.0 W |
| Flow Rate |
≥ 1300 mL / min |
| Water Pressure |
1.4M |
| Operation Temperature |
-10°C ~ +60°C |
| Noise Level | ≤ 28 dB(A) |
| Lifespan | 40,000 hours |
| Connector | PUMP: 3-pin | LED: 3-pin |
| Fan Dimensions |
120 x 120 x 25 mm |
| Bearing Type |
Hydraulic Bearing |
| LED Type |
Addressable RGB |
| Fan Speed |
800±200 ~ 1800±10% RPM |
| Airflow |
71.5 CFM (max.) |
| Air Pressure | 2.45 mmH₂O (max.) |
| Fan Noise Level | 31 dB(A) |
| Lifespan | 40,000 hours |
| Connector |
PH 2.0 7-pin (PWM+ARGB) |
| Rated Voltage |
FAN: DC 12 V | LED: DC 5 V |
| Operational Voltage |
FAN: DC 10.8-13.2 V | LED: DC 4.5-5.5 V |
| Rated Current |
FAN: 0.20-0.25 A | LED : 0.32 A |
| Socket Compatibility |
Intel : LGA 115X / 1200 / 1700 / 1851 / 20XX AMD: AM3/AM4/AM5 |
| Warranty |
3 Years |
