Tempered glasses adopt seamless panelling design with unique 45° bevelling technique.
Lower chamber features triangle-pattern vents to create the combination of futuristic tech and classic art.

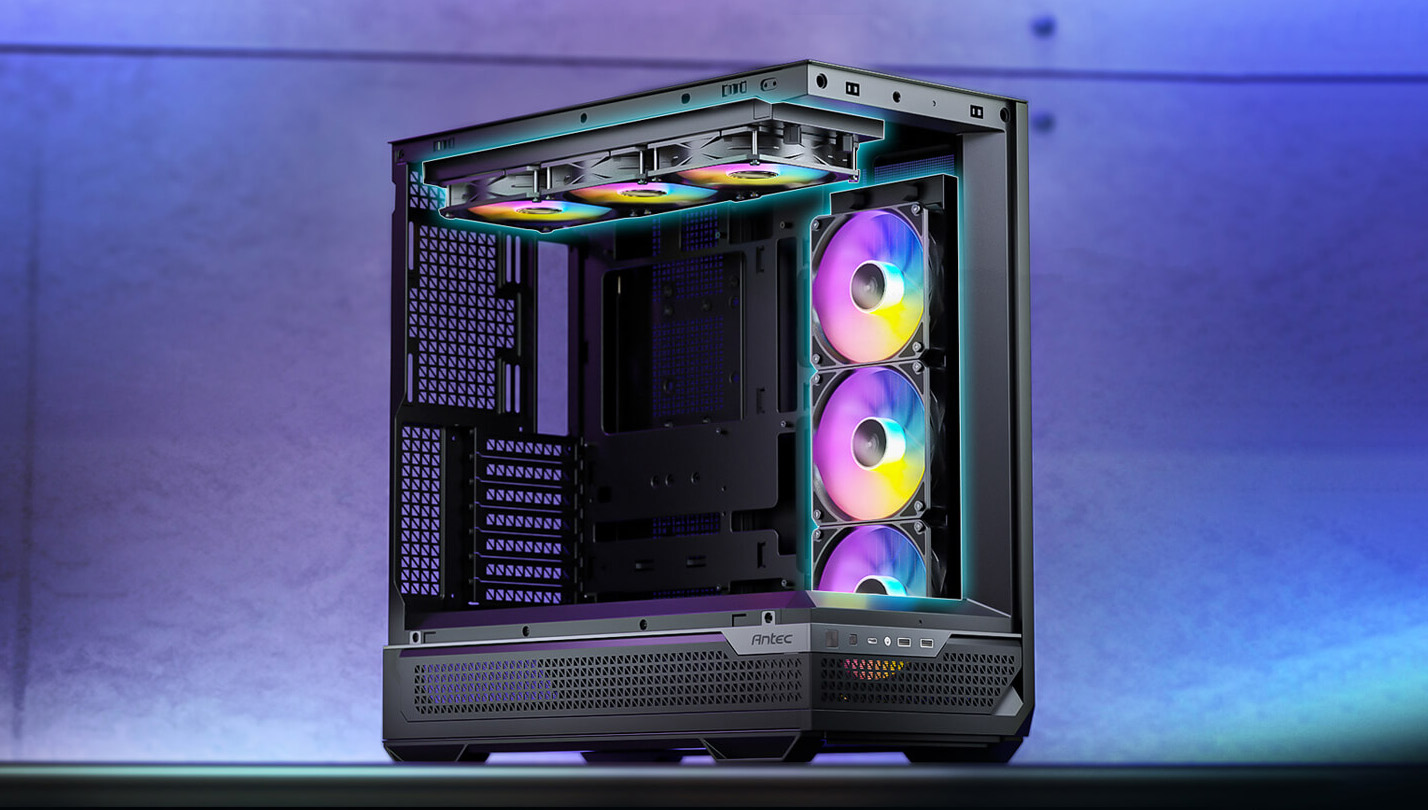

Supports up to 10 fans, with large area of vents around lower chamber, allowing for bottom-to-top vertical airflow.
Fine mesh on the top and right panel, and a great number of vents on the front, left and bottom of lower chamber provide massive airflow.
1 x P14 140 mm ARGB PWM regular fan
3 x P12 Reverse 120 mm ARGB PWM fans
Supports simultaneous installation of 360 mm radiators on the top and side.
Remove the small cover on the PSU shroud to install a side radiator. Overall thickness up to 70mm.
(*When installed a side radiator with more than 52mm thickness, GPU length is limited to 280mm.)
No interference between side radiator with standard thickness (52 mm) and RTX 4090.
Configured with 7 reusable PCI slot covers, which can be turned 90* to mount the GPU vertically (additional riser cable needed).
Plug in cables from behind to give front a cleaner look and a smoother airflow channel.
Right flip door supports up to 2 x 3.5" HDD /2.5" SSD and 2 x 2.5" SSD. The tray in the case bottom accommodates 3.5" HDD/2.5" SSD.
Supports multiple hard drives, with different compatibility depending on the form factor of installed motherboard, 3 x 3.5" HDD or 5 x 2.5" SSD at most.
Provides 2 Velcro straps on the back of motherboard to avoid cable clutter, and 2 Velcro straps at the rear for easier management of peripheral cables.
With a cable management space of 32 mm and a removable flip-door cable cover, allowing for unobstructed cable management.
- The lower front and lower left feature detachable mesh panels secured by hooks and magnets, with clip handle positions.
- Front panel and both side panels are secured by studs and hooks, with clip handle positions at the rear.
- Top panel is secured by studs.
Front: Magnetic filter
Left: Magnetic filter
Bottom: Full-size pull-out filter
For easier PSU installation and safer operation
- Power
- LED Control Button
- Type-C 10Gbps x 1
- Headphone/Mic Combo Jack
- USB 3.0 x2
Fan Support:
Top: 2 x 140 mm or 3 x 120 mm
Rear: 1 x 140 mm or 1 x 120 mm
Side: 3 x 120 mm
Bottom: 3 x 120 mm
Radiator Support:
Top: 360 mm
Rear: 140 mm
Side: 360 mm
Motherboard Support: E-ATX (≤ 272 mm), ATX, M-ATX, ITX
CPU Cooler Max Height: ≤ 180 mm
GPU Max Length: ≤ 450 mm
Power Supply Max Length: (include cable)≤ 210 mm
| Is Discontinued | No |
|---|---|
| SKU | ANTEC-TOWER-C7-CONST-ARGB-BLK |
| Brand | Antec |
| UPC/EAN | 0761345101356 |
| Case Specifications |
|
| Dimensions (D x W x H) | 485 x 241 x 504 mm |
| Form Factor | Mid Tower |
| Materials | Steel + Plastic + Glass |
| Mainboard Support | E-ATX(≤ 272 mm), ATX, Micro-ATX, ITX |
| Front Access and Controls | Power, LED Control Button, USB 3.0 x 2, Type-C 10Gbos x 1, Headphone/Mic Combo Jack |
| Side Panel | 4 mm Tempered glass |
| Drive Bays | |
| Expansion Slots | 7 |
| 3.5" / 2.5" |
Normal M/B: 3/3 M-ATX Back Connect: 3/3 ATX Back Connect: 2/2 |
| 2.5" |
Normal M/B: 2 M-ATX Back Connect: 1 ATX Back Connect: 1 |
| Fan Support |
|
| Top | 3 x 120 mm / 2 x 140 mm |
| Side | 3 x 120 mm |
| Power Supply Shroud | 3 x 120 mm |
| Rear | 1 x 120 mm / 1 x 140 mm |
| Included Fan(s) | 3 x 120 mm ARGB PWM reverse fans on right side + 1 x 140 mm ARGB PWM fan in rear |
| Radiator Support | |
| Top | 120 / 140 / 240 / 280 / 360 mm |
| Side | 120 / 240 / 360 mm |
| Rear | 120 / 140 mm |
| Clearance | |
| Max GPU Length | ≤ 450 mm (When overall AIO thickness > 52 mm, the length of the graphics card is limited to 280 mm) |
| Max CPU Cooler Height | ≤ 180 mm |
| Max PSU Length | (Include cable) ≤210 mm |
| Miscellaneous | |
| Dust Filter | Front / Left Side / Bottom |
| Warranty | 2 year |
