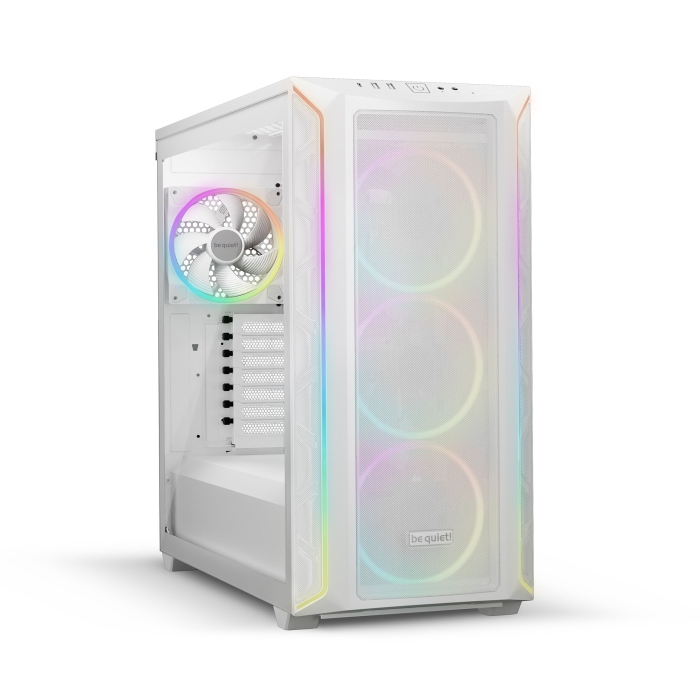

Shadow Base 800 FX White is an airflow-optimized midi-tower that offers impressive ARGB illumination and provides enough space for extensive components such as huge graphics cards and E-ATX motherboards.
- ARGB lighting with ARGB controller for maximum illumination options
- Multiple colours and modes for an individual look
- 4 Light Wings 140 mm PWM fans for high airflow and quiet operation
- Exceptionally high airflow thanks to an open mesh design
- Spacious design offers room for largest components
- PWM and ARGB hub included
- Simple and tool-less HDD and SSD installation
- Tinted and tempered glass side window allows a superb view
Lots of Illumination Possibilities
Light Wings PWM fans offer ARGB lighting at the front and rear. The subtly lit ring at the back combined with the bright one at the front make for a magnificent appearance from every angle. Additional ARGB LEDs at the front of the case offer multiple colors and modes to individualize the look. You can optionally synchronize lighting with your motherboard or an ARGB controller.
Thanks to 4 PWM Fans
With optimisation for maximum airflow, the Light Wings 140 mm PWM fan is the right choice for any case configuration that demands high cooling performance. Its 7 airflow-optimised fan blades not only reduce noise-generating turbulences but also ensure the fan provides the performance that is needed, even in demanding configurations. The fans are connected to a combined PWM and ARGB hub for up to 8 ARGB devices.
Airflow All The Way
For all who strive for maximum performance - especially with water-cooled systems - the Shadow Base 800 FX White with its extremely air-permeable front and top cover is the right choice. The dust filter can be easily removed for cleaning.
Generous Dimensions for Radiators up to 420 mm
With its remarkably large dimensions, Shadow Base 800 FX White sets no limits on creativity. It can accommodate radiators up to 420 mm, E-ATX motherboards and even the largest graphics cards.
Professional Cable Management
No matter the size or number of components built into the Shadow Base 800 FX White, with the cleverly integrated cable bars you can easily avoid annoying clutter. This results in a clean interior.
State-Of-The-Art Connectivity for Your System
A USB 3.2 Gen. 2 Type C port is provided on the front I/O panel, allowing the use of the latest hardware. The 2 USB 3.2 connectors and an ARGB controller button complement the I/O panel and make it a multi-purpose interface for any type of hardware.
A Perfect View Inside Your PC
The high-quality, fully windowed side panel offers a perfect view of the components inside your PC case. The window is made of tinted and tempered glass with black painted side bars.
Is Discontinued | No |
---|---|
SKU | BQ-CASE-SHADOW-BASE-800-W |
Brand | be quiet! |
UPC/EAN | 4260052190647 |
General Data |
|
Model | Shadow Base 800 White |
Colour | White |
Motherboard Compatibility | E-ATX / ATX / M-ATX / Mini-ITX |
Case Size Excl.Stands (LxWxH) | 550 x 247 x 503 mm |
Case Size Incl.Stands (LxWxH) | 550 x 247 x 522 mm |
Volume | 62.74 L |
PSU Form Factor | ATX PS/2 |
Weight | 12.3 kg |
Expansion Slots | 7 |
Pre-Installed Fans |
|
Fan @ Top | - |
Fan @ Front | 3 x Light Wings White 140 mm PWM |
Fan @ Side | - |
Fan @ Rear | 1 x Light Wings White 140 mm PWM |
Fan @ Bottom | - |
Fan Dimensions | 140 x 140 x 25 mm |
Fan speed @ 100% PWM/12V | 1500 RPM |
Airflow @ 100% PWM/12V | 56 / 95.14 CFM / m3/h |
Air Pressure @ 100% PWM/12V | 1.49 mm H2O |
Noise Level @ 100% PWM/12V | 23.3 dB(A) |
Voltage Range | 12 V DC |
Input Power | 4.56 W |
Input Current | 0.38 A |
Connector | 4-Pin PWM |
Lifespan | 60,000 h / 25°C |
Fan Controller | - |
Maximum Fan Installation | |
Maximum Fans | 8 |
Top | 3 x 120 / 3 x 140 mm |
Front | 3 x 120 / 3 x 140 mm |
Side | - |
Rear | 1 x 120 / 1 x 140 mm |
Bottom | 1 x 120 / 1 x 140 mm |
PSU shroud | - |
Optional Radiator Installation | |
Top | 120 / 140 / 240 / 280 / 360 / 420 mm |
Front | 120 / 140 / 240 / 280 / 360 / 420 mm |
Side | - |
Rear | 120 mm |
Bottom | - |
PSU Compatibility | |
Maximum Dimensions Excl. Bottom Fan | 305 mm |
Maximum Dimensions Incl. Bottom Fan | 260 mm |
Graphics Card |
|
HDD Cage (In Height of Graphics Card) Installed | 430 mm |
HDD Cage (In Height of Graphics Card) Removed | 430 mm |
Maximum PCIe Slots with Vertical Graphics Card (pcs.) | 7 |
Drive bay capacity | |
5.25 Bays | - |
3.5 Slots (Max.) | 3 |
3.5 Slots (Scope of Delivery) | 1 |
2.5 Slots (Max.) | 7 |
2.5 Slots (Scope of Delivery) | 3 |
Cooling |
|
Max.Construction Height of CPU Cooler Unit | 180 mm |
Airflow Channel | Front / Top / Rear / Bottom |
Lighting |
|
LED Illumination | ✓ |
LEDs (pcs.) | 40 |
LED Type | ARGB - 5V |
LEDs Synchronizable with Controller/Motherboard | ✓ |
I/O Panel | |
USB 3.2 Gen. 2 Type C | 1 |
USB 3.2 Type A |
2 |
USB 2.0 | - |
HD Audio I/O | Mic + Audio |
Qi Charger / Quick Charging Option | - |
Insulation and Damping | |
Top Panel Insulation Mats | - |
Front Panel Insulation Mats | - |
Side Panel Insulation Mats | ✓ |
Anti-Vibration Decoupled HDD | ✓ |
Anti-Vibration Decoupled Fan | ✓ |
Anti-Vibration Decoupled PSU | ✓ |
Anti-Vibration Decoupled Motherboard-Tray | - |
Removeable Dust Filters | |
Top |
- |
Front | 1 |
Side | - |
Bottom |
1 |
Material | |
Top Cover | ABS |
Front Panel | ABS |
Side Panel | Steel |
Side Panel Window | Tempered Glass |
Stands | ABS |
Safety Certification |
|
Approvals |
CE, UKCA |
Environmental Directives |
|
ROHS |
✓ |
Reach |
✓ |
WEEE |
✓ |
Triman |
✓ |
Scope of Delivery | |
Screw Set (Drives/Motherboard) | ✓ |
Additional Standoffs (pcs.) | - |
SSD Bracket for PSU Shroud | - |
LED Strips (pcs.) | - |
Cable Ties (pcs.) | 6 (Velcro) / 4 (Velcro) |
Screw Box | - |
VGA Holder | - |
VGA Holder for Inverted Layout | - |
Mesh Front Panel | - |
ODD Bracket | 6 (Velcro) |
Fan/Radiator Bracket for Multi Mounting Panel | - |
Service | |
Warranty | 3 Years |
