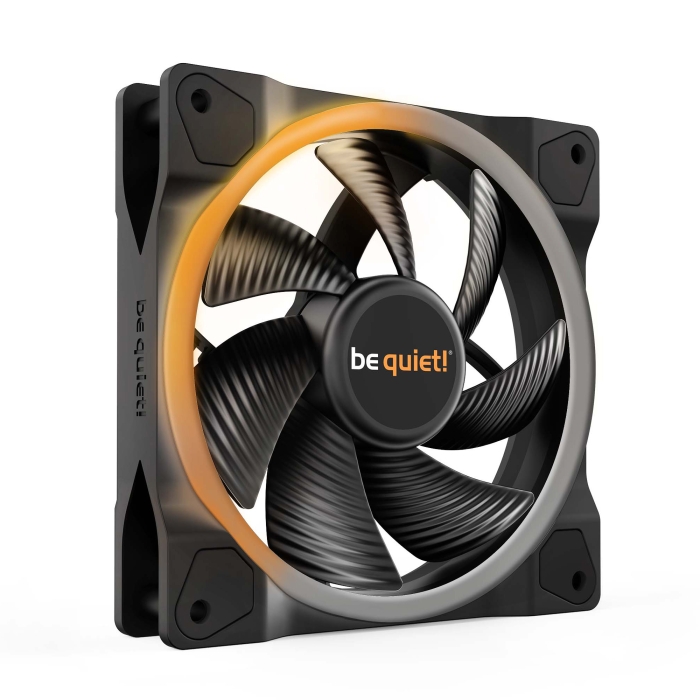

Light Wings 120mm PWM offers impressive illumination for a vibrant unique look, strong performance and quiet operation with efficient cooling.
- ARGB lighting on front and rear
- Multiple colours and modes for an individual look thanks to 18 LEDs
- 7 silence-optimised fan blades for high airflow and low noise-generating turbulences
- Very quiet operation with max. 20.6dB(A)
- Long life rifle-bearing gives an operating lifetime of 60,000 hours
- 3-year manufacturer’s warranty
If you are looking for a quiet case fan with an impressive look from every angle, Light Wings 120mm PWM is your fan of choice.
Lots of Illumination Possibilities
Light Wings 120mm PWM offers ARGB lighting at the front and rear. The subtly lit ring at the back combined with the bright one at the front make for a magnificent appearance from every angle. 18 ARGB LEDs give you many opportunities to individualize your PC build.
Fan Blades Optimised for High Airflow
With optimisation for maximum airflow, Light Wings 120mm PWM is the right choice for any case configuration that demands high cooling performance. Its seven airflow-optimised fan blades not only reduce noise-generating turbulences but also ensure Light Wings 120mm PWM provides the performance that is needed, even in demanding configurations.
Acclaimed be quiet! Low Noise Level
A highly optimised impeller achieves the silent operation be quiet! is famous for. With a noise level of 20.6dB(A) at maximum fan speed, it proves that instead of being a replacement the lighting is an addon to very silent and powerful operation. All features combine to make Light Wings 120mm PWM the fan of choice for silent show cases and gaming systems alike.
Adjusts the Fan Speed and Associated Noise Level
Pulse Width Modulation (PWM) allows compatible 4-pin controllers, including those built into many motherboards, to intelligently vary the speed and thus the noise level of the fan. With PWM the system can ramp up the cooling when it’s needed, or operate in maximum quiet mode when it’s not.
Is Discontinued | No |
---|---|
SKU | BQ-FAN-LIGHTWINGS-120-PWM-B |
Brand | be quiet! |
UPC/EAN | 4260052188767 |
General Data |
|
Model | Light Wings 120mm PWM |
Dimensions | 120 mm |
Colour Option | Black |
Lighting | ARGB LED |
Fan Speed @ 100% PWM / 12 | 1700 RPM |
Noise Level @ 100% PWM / 12 | 20.6 dB(A) |
Air Flow @ 100% PWM / 12V | 41.51 / 70.53 CFM / m3/h |
Air Pressure @ 100% PWM / 12V | 1.66 mm H2O |
Mechanical Specifications |
|
Dimensions (L x W x H) | 120 x 120 x 25 mm |
Weight incl. Fixed Cables | 200 g |
Bearing Technology | Rifle |
Motor Technology | 4-pole fan motor |
Push Pin Fixing | - |
Screw Fixing | ✓ |
Cables / Connectors |
|
Daisy-Chain Compatible | ✓ |
Lighting Connector | 5V 3-pin ARGB |
Connector | 4-pin PWM |
Cable Length | 500 mm |
Cable Sleeve | - |
Performance / Noise |
|
Air Flow @ 100% PWM / 12V | 41.51 / 70.53 CFM / m3/h |
Air Pressure @ 100% PWM / 12V | 1.66 mm H2O |
Noise Level @ 100% PWM / 12V | 20.6 dB(A) |
Lifespan | 60,000 h / 25°C |
Electrical Specifications |
|
Rated Voltage DC | 12 V |
Operating Voltage DC | 5 - 13.2 V |
Current Consumption | 0.07 A |
Safety Current | 0.38 A |
Input Power | 4.56 W |
Rated Current LED | 0.6 A |
Accessories |
|
3-pin to 4-pin 12V-Connector | - |
12V to 7V Adapter | - |
12V to 5V Adapter | - |
Screws | 4 |
Push Pins | - |
Hard Plastic Washer | - |
Others | - |
Safety Certification |
|
Approvals | CE / UL |
Environmental Directives |
|
RoHs | - |
WEEE | ✓ |
Triman | - |
Service | |
Warranty | 3 Years |
