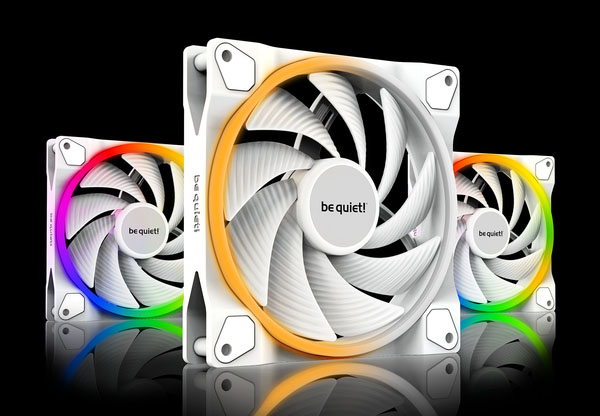

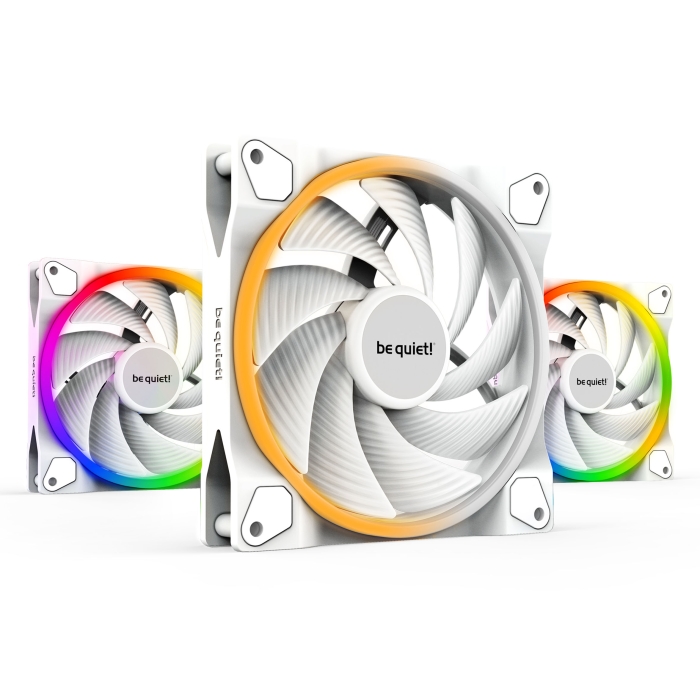

The Light Wings White 140mm PWM high-speed Triple Pack offers impressive illumination for a vibrant unique look, strong performance and quiet operation with efficient cooling. If you are looking for high performance fans with an impressive look from every angle, the Light Wings White 140mm PWM high-speed are your fans of choice.
- 3 fans included
- Amazing ARGB colors and effects for an individual look with 20 LEDs
- Additional illumination on the rear
- ARGB Hub allows synchronization of up to 6 ARGB components
- 9 silence-optimised fan blades for high pressure and reduced noise-generating turbulences
- Remarkable performance-to-noise ratio with 31dB(A) at 2,200rpm
Time To Let Your System Shine
Light Wings let systems shine bright and colourful ever since their launch. The strongly demanded white version now makes the popular fan series suitable for the taste of even more users. Light Wings White 140mm PWM high-speed comes with all parts in white, enabling all-white PC builds.
Lots of Illumination Possibilities
Light Wings White 140mm PWM high-speed offers ARGB lighting at the front and rear. The subtly lit ring at the back combined with the bright one at the front make for a magnificent appearance from every angle. 20 ARGB LEDs give you many opportunities to individualize your PC build.
Synchronize Up To 6 Light Wings Simultaneously
An ARGB Hub allows to synchronize up to 6 ARGB components. The installation is user-friendly, easy, and convenient, while the elegant all-white design of the ARGB Hub visually suits any PC case. It can be mounted like an SSD or anywhere else using the double-coated adhesive tape supplied. All Light Wings White come in triple packs and with the ARGB hub included, for your convenience.
Fan Blades Optimised For High Pressure
With a remarkably high air pressure of up to 2.3mm/H2O, Light Wings White 140mm PWM high-speed is the best choice for water- and air-cooled systems alike. The 9 airflow-optimized fan blades provide enough air pressure to make this fan perfect, even in demanding configurations.
Acclaimed be quiet! Low Noise Level
A highly optimised fan frame and impeller achieve the silent operation be quiet! is famous for. With a noise level of just 31dB(A) at maximum fan speed, it proves that instead of being a replacement the lighting is an addon to silent and very powerful operation. All features combine to make Light Wings White 140 mm PWM high-speed the fan of choice for silent show cases and gaming systems alike.
Adjusts The Fan Speed and Associated Noise Level
Pulse Width Modulation (PWM) allows compatible 4-pin controllers, including those built into many motherboards, to intelligently vary the speed and thus the noise level of the fan. With PWM the system can ramp up the cooling when it’s needed or operate in maximum quiet mode when it’s not.
Is Discontinued | No |
---|---|
SKU | BQ-FAN-LIGHTWINGS-140-PWM-HS-W-3PACK |
Brand | be quiet! |
UPC/EAN | 4260052190265 |
General Data |
|
Model | Light Wings White 140mm PWM high-speed |
Dimensions | 140 x 140 x 25 mm |
Colour Option | White |
Lighting | ARGB LED |
Fan Speed @ 100% PWM / 12 | 2200 RPM |
Noise Level @ 100% PWM / 12 | 31 dB(A) |
Air Flow @ 100% PWM / 12V | 71.7 / 121.82 CFM / m3/h |
Air Pressure @ 100% PWM / 12V | 2.3 mm H2O |
Mechanical Specifications |
|
Dimensions (L x W x H) | 140 x 140 x 25 mm |
Weight incl. Fixed Cables | 251 g |
Bearing Technology | Rifle |
Motor Technology | 4-pole fan motor |
Push Pin Fixing | - |
Screw Fixing | ✓ |
Cables / Connectors |
|
Daisy-Chain Compatible | ✓ |
Lighting Connector | 5V 3-pin ARGB |
Connector | 4-pin PWM |
Cable Length | 500 mm |
Cable Sleeve | - |
Performance / Noise |
|
Air Flow @ 100% PWM / 12V | 71.7 / 121.82 CFM / m3/h |
Air Pressure @ 100% PWM / 12V | 2.3 mm H2O |
Noise Level @ 100% PWM / 12V | 31 dB(A) |
Lifespan | 60,000 h / 25°C |
Electrical Specifications |
|
Rated Voltage DC | 12 V |
Operating Voltage DC | 5 - 13.2 V |
Current Consumption | 0.16 A |
Safety Current | 0.39 A |
Input Power | 4.68 W |
Rated Current LED | 0.67 A |
Accessories |
|
3-pin to 4-pin 12V-Connector | - |
12V to 7V Adapter | - |
12V to 5V Adapter | - |
Screws | 16 |
Push Pins | - |
Hard Plastic Washer | - |
Others | ARGB Hub, ARGB Hub cable, double coated tissue tape, fastening screws for ARGB hub |
Safety Certification |
|
Approvals | CE / UL |
Environmental Directives |
|
RoHs | ✓ |
WEEE | ✓ |
Triman | ✓ |
Service | |
Warranty | 3 Years |
