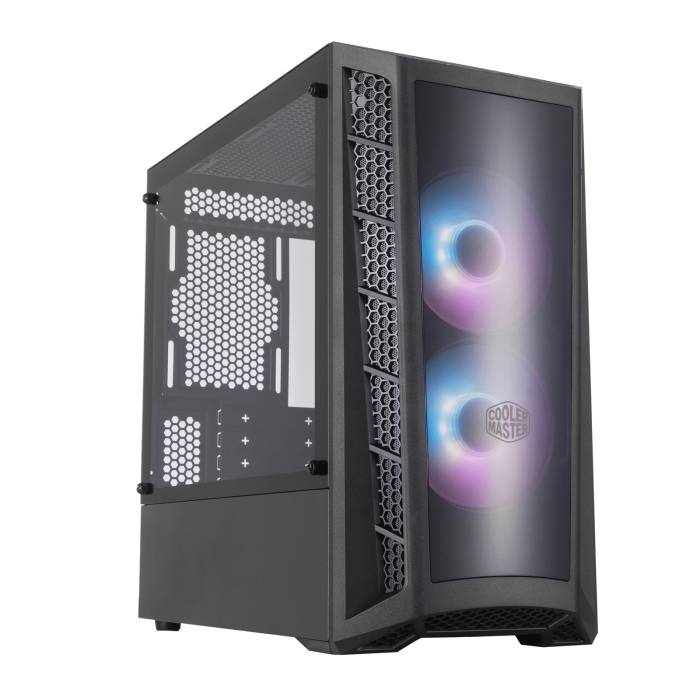

The MasterBox MB320L ARGB is a Micro-ATX PC case with two pre-installed ARGB fans and honeycomb mesh ventilation on either side of the DarkMirror front panel. The DarkMirror front panel is smoked a shade darker to sharpen the contrast of the ARGB fans pre-installed behind it, highlighting its best features.
A high potential for both air-cooled and liquid-cooled builds comprise of front, top, and rear ventilation with the possibility to mount additional fans and radiators. Upholding the award-winning principles of the MB Series, versatility is paired with presentation to ensure that any gaming system built inside the MasterBox MB320L ARGB looks as good as it performs.
The DarkMirror front panel shades light to add contrast to illuminated components.
Large, mesh intakes span each side of the front panel to provide additional airflow to system.
Two pre-installed 120mm ARGB fans can be managed by the motherboard, connected by the included splitter, to create a comprehensive ARGB lighting system.
Hardware, custom-loop cooling, and the pure pride of the builder is shown in panoramic view through an edge-to-edge tempered glass side panel.
The drive cage is able to shift toward the front to accommodate for PSU space, backwards to provide additional radiator space, or even completely removed.
Support for up to six fans and front, top, and rear radiator support ensure that performance is not compromised.
Support for up to a 344mm graphics card, a 166mm CPU cooler, and up to a 325mm PSU in length provides room for upgrades to stay ahead of the game.
The small ARGB Controller is a mini-sized controller that allows your Addressable RGB such as fans and LED strips to be powered and controlled even in PC systems without an A-RGB capable motherboard.
The controller comes with 14 lighting presets to make full use of the Addressable LEDs in the system and also allows to be completely switched off by long pressing its button.
It is also possible to attach any external 2pin button to it to be able to switch presets without having to open the system. For ease of use, Cooler Master allows the RESET button to be optionally connected to the controller and used as an external ARGB preset switch button.
Series: MasterBox Series
Size: Mini Tower
Available Colour(s): Black
Materials: Plastic, Tempered Glass, Mesh
Dimensions (L x W x H): 435.5 x 217.5 x 410mm, 366.5 x 210 x 400mm
Weight: 5.47kg
Motherboard Support: Micro ATX, Mini ITX
Expansion Slots: 4
5.25" Drive Bays: N/A
2.5" / 3.5" Drive Bays (combo): 2
2.5" Drive Bays: 2
I/O Panel: 2x USB 3.2 Gen 1 (formerly USB 3.0), 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack, 1x ARGB 2-to-3 splitter, 1x ARGB Controller (only for the S02 versions)
Pre-installed Fans - Front: 2x 120mm ARGB Fan
Fan Support - Top: 2x 120/140mm
Fan Support - Front: 3x 120mm, 2x 140mm
Fan Support - Rear: 1x 120mm
Radiator Support - Top: 120mm, 240mm
Radiator Support - Front: 120mm, 140mm, 240mm, 280mm
Radiator Support - Rear: 120mm
Clearance - CPU Cooler: 166mm/6.54"
Clearance - PSU: 140mm (HDD cage in backmost position), 325mm (w/o front radiator & HDD cage)
Clearance - GFX: 344mm
Cable Routing: 18-22mm
Dust Filters: Top, Bottom, Front
Power Supply Support: Bottom mount, ATX
| Is Discontinued | No |
|---|---|
| SKU | CM-TOWER-MASTERBOX-MB320L-ARGB-WC |
| Brand | Cooler Master |
| UPC/EAN | 4719512097601 |
