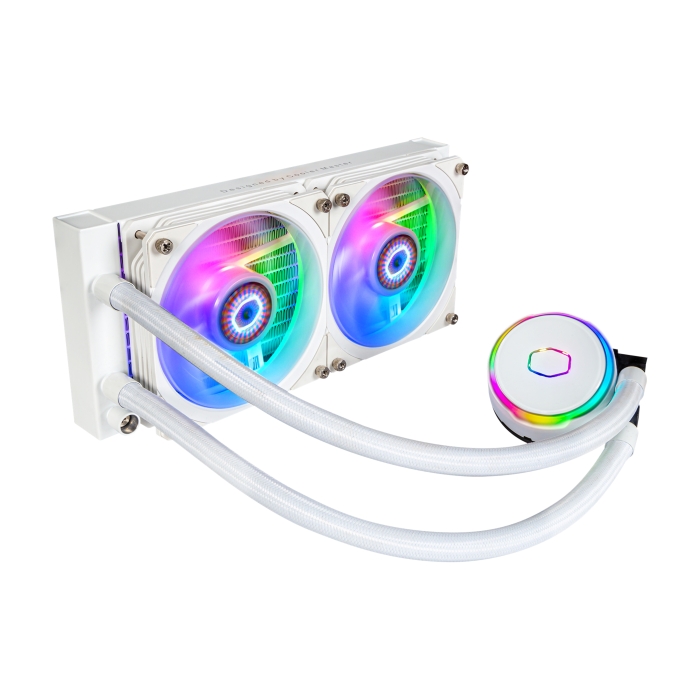

Cooler Master’s Flux is the new embodiment of enhanced performance cooling. The dual chamber pump has further honed flow and pressure to target hot spots for rapid and precise heat dissipation.
New Compact Performance Dual Chamber pump delivers the perfect balance of water flow and pressure for impressive cooling.
Precision engineered ultra-thin spaded fins maximizes microchannels accurately targets heat spots. Enlarged copper base surface area optimized with ideal base thickness accelerates heat transfer.
High speed motor utilizing a ceramic bearing impeller forces balanced water flow to and from the radiator for ultimate efficiency of heat exchange.
Low profile radiator with superior fin density coupled with performance fans dissipates heat rapidly.
120 mm square frame ARGB fan designed with inter-connecting air balance fan blades uniquely modified for the PL-Flux Series.
Inter-conneting air balance fan blades increased sturdiness and stability operating steadily at high speed. Angled inner rim of fan frame increasing intake of air, at the same time gap between from and blades creating greater air pressure.
Addressable Gen 2 RGB ready for independent implemented customization
Included Gen 2 ARGB controller works with Cooler Master's MasterPlus+ software Customizing each individual LED in color, effect, brightness, and more – all from an intuitive, convenient interface.
| Is Discontinued | No |
|---|---|
| SKU | CM-CPULCOOLER-PL240-FLUX-ARGB-W |
| Brand | Cooler Master |
| UPC/EAN | 4719512131961 |
| Exterior Colour |
White |
| CPU Socket | LGA1700, LGA1200, LGA2066, LGA2011-v3, LGA2011, LGA1151, LGA1150, LGA1155, LGA1156, AM5, AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1, TR4 |
| Radiator Material | Aluminium |
| Radiator Dimensions | 277 x 119.6 x 27.2 mm / 10.9 x 4.7 x 1.07 inch |
| Pump Dimensions | 89 x 75 x 40 mm / 3.5 x 2.95 x 1.57 inch |
| Pump MTTF | >210,000 Hours |
| Pump Noise Level | 15 dBA (Max) |
| Pump Connector | 4-Pin |
| Pump Rated Voltage | 12 VDC |
| Pump Power Consumption | 6 W |
| Fan Dimensions (L x W x H) | 120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch |
| Fan Quantity | 2 PCS |
| Fan LED Type | Addressable Gen 2 RGB |
| Fan Speed | 0-2300 RPM ± 10% |
| Fan Airflow | 72.37 CFM (Max) |
| Fan Noise Level | 32 dBA (Max) |
| Fan Pressure | 2.96 mmH₂O (Max) |
| Fan Bearing Type | Oil Reflow Bearing System |
| Fan MTTF | >160,000 Hours |
| Fan Power Connector | 4-Pin (PWM) |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.15 A |
| Fan Safety Current | 0.3 A |
| Warranty | 5 years |
| Series | MasterLiquid Pro |
| Cooler Type | Liquid Cooler |
| Radiator Size | 240 |
