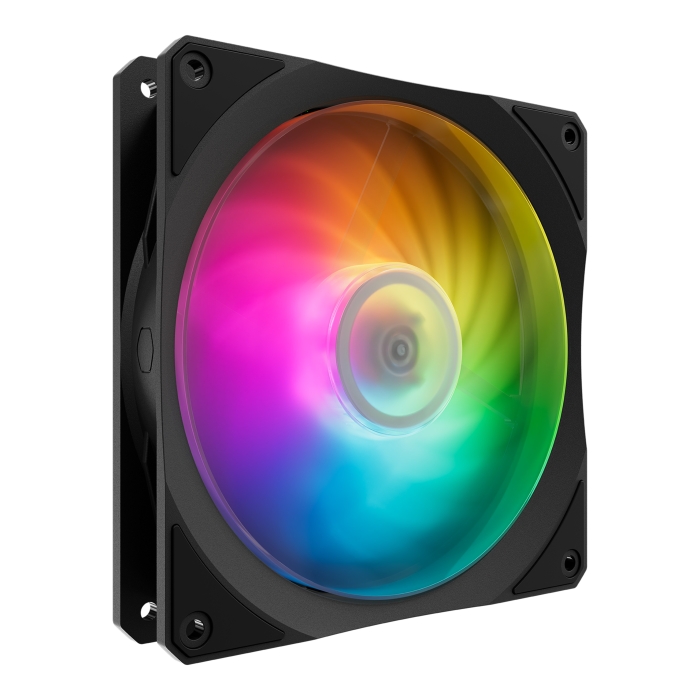

Cooler Master’s Mobius 140P ARGB is part of their new series of performance fans. With our enhanced Ring Blade Design, the Mobius Series optimizes both performance and acoustics, catering to a dynamic range of applications from case, liquid or air, to overclocking and intense gaming.
Interconnecting fan blades designed for a reinforced and rigid structure, eliminating vibration for stable and fluid fan operation.
Their newly designed ORBS (Oil Reflow Bearing System) has thick oil film and lubrication formation that can achieve stable running.
The oil flows back to the sealed bearing to create constant lubrication against friction and increases the life span of the fan.
The sealed and concave position of the bearing prevents air and dust exposure and ensures a smooth transfer of motion.
Magnetic ring prevents bearing shaft from tilting, stabilizing the fan to prevent fan blade obstruction under various orientations, as well as oil spray.
Angled inner frame rim with chamfered side vents boost airflow draw, maximizing force induced air pressure and diminishing dead air.
Sound output fine tuned to the optimal prominence ratio to achieve sub 6dB noise levels without performance sacrifice.
Acoustic Testing Anechoic Chamber for ISO 3745
FFT analyzer: AD-3524 O Microphone: B&K 2235
Sound Pressure: IS0-7779
Sound Power: ISO-7779
Sound Quality: 1S0-532B /ISO
Background noise: below 6dBA
Exclusive Cooler Master colour accent dampers diminish vibration and rattling to maintain chassis stability for silent performance.
Addressable Gen 2 RGB syncs with Cooler Master’s MasterPlus+ software and dedicated controller, allowing customization of individual LED colours, effects, brightness and more – all from an intuitive, convenient interface. (controller sold separately)
Is Discontinued | No |
---|---|
SKU | CM-FAN-MOBIUS-140P-ARGB-BLK |
Brand | Cooler Master |
UPC/EAN | 4719512132081 |
Exterior Colour | Black |
Fan Dimensions (L x W x H) | 140 x 140 x 25 mm / 5.5 x 5.5 x 1 inch |
Fan Profiles | Addressable Gen 2 RGB |
Fan Speed | 0-1900 RPM ± 10% |
Fan Airflow |
76.5 CFM |
Fan Noise Level | 30 dBA |
Fan Bearing Type | Loop Dynamic Bearing |
Fan Air Pressure | 2.3 mmH2O |
Fan MTTF | >160,000 Hours |
Fan Power Connector | 4-Pin (PWM) |
Fan Rated Voltage | 12 VDC |
Fan Rated Current | 0.35A |
Fan Safety Current | 0.4A |
Fan Power Consumption | 4.2W |
RGB Connector |
3-Pin ARGB |
RGB Rated Voltage |
5 VDC |
RGB Rated Current |
0.48 |
Fan Weight | 222g / 0.49 lbs |
Warranty | 5 years |
Series | Mobius Series |
Cooler Type | Case Fan |
Fan Size | 140 |
