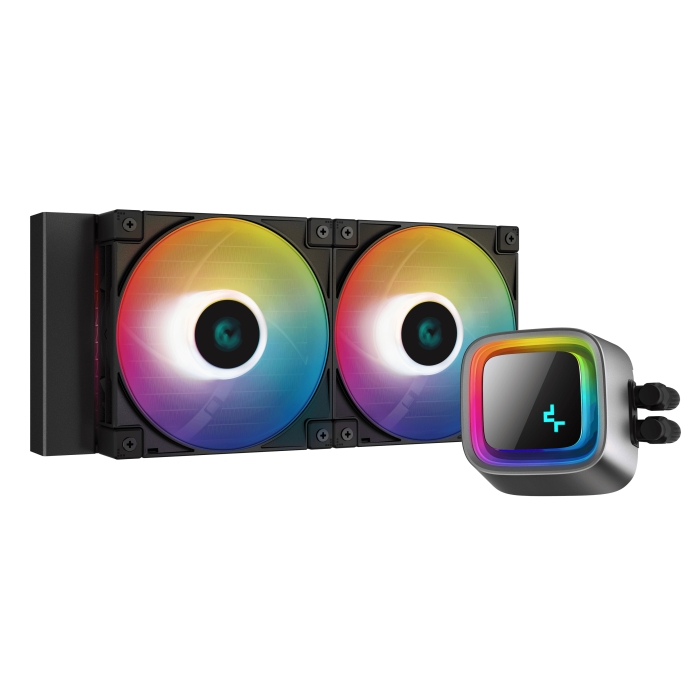

The DeepCool LS520 premium liquid CPU cooler maximizes cooling performance and low-noise efficiency with a 240mm radiator, two FC120 A-RGB PWM fans, and an infinity mirror cap design.
Built on our 4th Generation high-performance water pump that maximizes cooling performance featuring:
1. Improved microchannel design ensures optimal coolant flow.
2. Powerful three-phase drive motor up to 3100 RPM.
3. Thick solid copper base with a seamless match
Get treated to excellent cooling and superb silent efficiency with the included FC120 fans boasting enhanced static pressure, concentrated airflow, and a fluid dynamic bearings.
500~2250 RPM *
Dynamic PWM Range
85.85 CFM
Supreme Airflow
≤32.9 dB(A)
Full Load Noise
50,000 Hours
Long Operational Lifespan
Installation is quick and easy with newly designed mounting brackets that keep your cooler fastened safely on both Intel and AMD platforms.
The new infinity mirror pump face design projects two light loops for a mesmerizing visual effect while also allowing installation in any orientation with a independently rotatable logo plate. For full customization, an additional blank plate is provided for your own design.
Coordinate your colors through supported RGB software and motherboard synchronization to access control for different lighting effects. A default Auto-RGB rainbow effect is enabled when no controller is detected allowing limited functionality on motherboards without 5V A-RGB headers.
| Is Discontinued | No |
|---|---|
| SKU | DC-AIOCOOLER-LS520-BLK |
| Brand | DeepCool |
| UPC/EAN | 6933412727484 |
| CPU Socket |
Intel: LGA2066/2011-v3/2011/1700/1200/1151/1150/1155 AMD: sTRX4/sTR4/AM5/AM4 |
| Net Weight |
1305 g |
| Radiator Dimensions | 282 x 120 x 27 mm |
| Radiator Material | Aluminium |
| Tube Length | 410 mm |
| Pump Dimensions | 86 x 74 x 57 mm |
| Pump Speed | 3100 RPM±10% |
| Pump Noise | 19 dB(A) |
| Pump Connector | 3-Pin |
| Pump Rated Voltage | 12 VDC |
| Pump Rated Current | 0.47 A |
| Pump Power Consumption | 5.64 W |
| Fan Dimensions | 120 x 120 x 25 mm |
| Fan Speed | 500~2250 RPM±10% |
| Fan Airflow | 85.85 CFM |
| Fan Air Pressure | 3.27 mmAq |
| Fan Noise | ≤32.9 dB(A) |
| Fan Connector | 4-Pin PWM |
| Bearing Type | Fluid Dynamic Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.29 A |
| Fan Power Consumption | 3.48 W |
| LED Type | Addressable RGB LED |
| LED Connector | 3-pin(+5V-D-G) |
| LED Rated Voltage | 5 VDC |
| LED Power Consumption | 2.2 W（PUMP）/ 3.6 W（FAN×2） |
