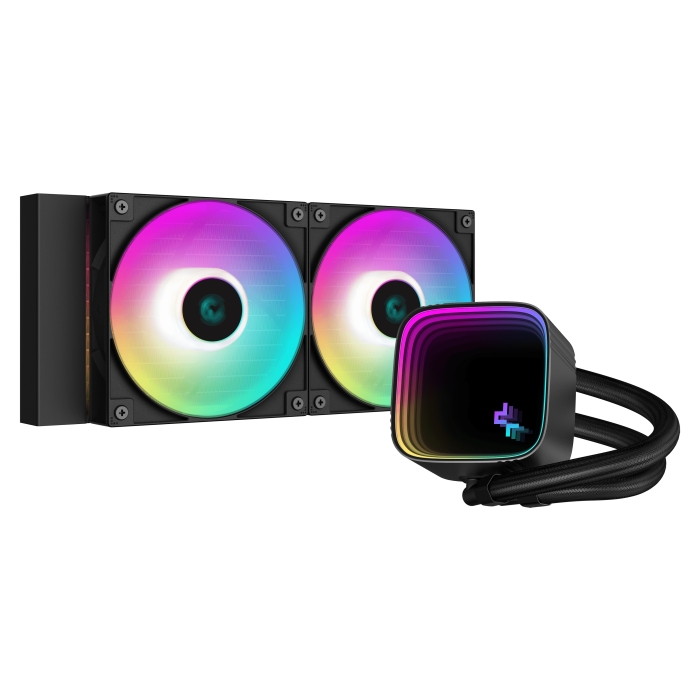

The DeepCool LS520 SE is an all-in-one liquid CPU cooler that provides reliable high-performance cooling built on a new water pump design for optimal results. Color coordinate to the rest of your system with a big and bright ARGB infinity mirror cover on the CPU water block and included ARGB fans.
Built on our 4th Generation high-performance water pump that maximizes cooling performance featuring:
1. Optimized microchannels ensure efficient coolant flow.
2. Powerful three-phase drive motor up to 3100 RPM.
3. Thick solid copper coldplate with a seamless match.
A mirror-plated top cover with a narrow frame captures an infinite reflection of 16 RGB LEDs for a vibrant visual effect. The smooth aluminum housing adds a premium finishing touch and a lustrous shine.
Keep your cool with 120mm ARGB PWM fans that beat the heat with maximum static pressure and powerful airflow. An included low-speed adapter reduces maximum noise by up to 10dB for ultimate silence.
500~2250 RPM
Dynamic PWM Range
85.85 CFM
Supreme Airflow
3.27 mmAq
Air Pressure
≤32.9 dB(A)
Full Load Noise
Easily control and coordinate your cooler's RGB lighting effects via compatible motherboards and controllers for full customization.
Sturdy mounting brackets are included for both Intel and AMD sockets that are simple and easy to install.
| Is Discontinued | No |
|---|---|
| SKU | DC-AIOCOOLER-LS520-SE-BLK |
| Brand | DeepCool |
| UPC/EAN | 6933412727989 |
| CPU Socket |
Intel: LGA1700/1200/1151/1150/1155 AMD: AM5/AM4 |
| Net Weight |
1346 g |
| Radiator Dimensions | 282 x 120 x 27 mm |
| Radiator Material | Aluminium |
| Tube Length | 410 mm |
| Pump Dimensions | 85 x 73 x 55 mm |
| Pump Speed | 3100 RPM±10% |
| Pump Noise | 19 dB(A) |
| Pump Connector | 3-Pin |
| Pump Rated Voltage | 12 VDC |
| Pump Rated Current | 0.38 A |
| Pump Power Consumption | 4.56 W |
| Fan Dimensions | 120 x 120 x 25 mm |
| Fan Speed | 500~2250 RPM±10% |
| Fan Airflow | 85.85 CFM |
| Fan Air Pressure | 3.27 mmAq |
| Fan Noise | ≤32.9 dB(A) |
| Fan Speed (with LSP) | 500~1600 RPM±10% |
| Fan Airflow (with LSP) | 60.85 CFM |
| Fan Air Pressure (with LSP) | 1.65 mmAq |
| Fan Noise (with LSP) | ≤28.2 dB(A) |
| Fan Connector | 4-Pin PWM |
| Bearing Type | Hydro Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.25 A |
| Fan Power Consumption | 3.0 W |
| LED Type | Addressable RGB LED |
| LED Connector | 3-pin(+5V-D-G) |
| LED Rated Voltage | 5 VDC |
| LED Power Consumption | 2.7 W（PUMP）/ 2.1 W（FAN×2） |
