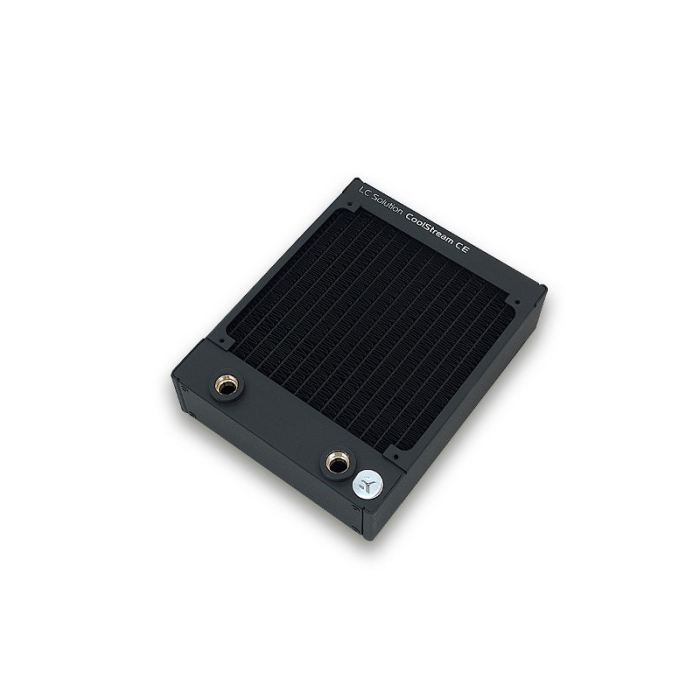

EK-CoolStream CE 140

EK-CoolStream CE is a high-performance computer liquid cooling radiator which combines EK's unique CSQ design with latest radiator core engine. Built for EK-Vardar 140mm high static pressure fans, these radiators are optimized for maximum heat dissipation across entire fan operational range thus delivering exceptional performance at both low- and high airflow operation.

EK assured quality level, optimal price-performance ratio and unique minimalistic design make these EK-CoolStream CE series radiators a perfect choice for any computer water cooled system.

This radiator offers best cooling capacity in the 40mm thick radiator class: Dual stack copper fins provide massive surface area while the parallel flow cooling chambers reduce hydraulic flow resistance to a minimum. Radiator shrouds are tapped with UNC 6-32 threads on both sides to enable push-pull fan installation to even further increase the cooling performance.

This product features two recessed G1/4 threaded ports with pre-installed extenders to allow any G1/4 threaded fitting to be used. EK recommends EK-ACF series compression fittings.

Specifications:

Material:

- Copper fins

- 90% copper tubing (H90)

- Brass chambers

- Aluminum/Steel housing

Liquid Capacity: ~200mL

FPI: 18

Port threads: 2x G1/4

Fan compatibility: any standard size 140x140x25mm fan; UNC 6-32 thread tapping

Pressure tested: 1bar(g)

Enclosed:

- EK-CoolStream CE series radiator /w two pre-installed G1/4 extenders

- Flat-head UNC 6-32 screws (l=30mm)

- Flat-head UNC 6-32 screws (l=5mm)

- Allen key 2,5mm

Please Note:

- When using fans other than standard 140x140x25mm size please use appropriately long screws!

- Use of the improperly long screws may result in piercing of the radiator core and irreparably damage the product. Such misuse is not covered by product warranty!

- This product should NOT be installed with any aluminum Fluid Gaming parts!
