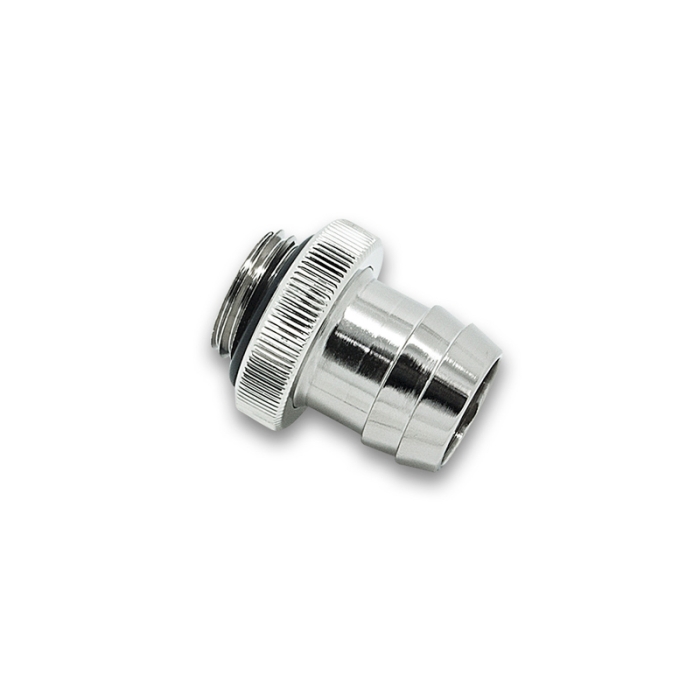

EK-HFB High Flow Barb Fitting 12mm

EK-HFB Fitting (High Flow Barb) is a soft-tube barb fitting, designed for use with flexible soft tubing such as PVC, EPDM, Norprene, silicone or any other type of compatible flexible tube.

EK-HFB Fitting is a stylish looking variant of the classic high flow barb fitting and requires the use of hose clamps or similiar substitute for safest operation.

The barb is made from nickel-plated CNC machined brass with quality O-rings while the ring is made from CNC machined aluminium. These fittings are fully compatible with EK-AF series (45°/90°) angled adapters.

These fittings can be either tightened by hand or by using Allen Key 8mm (not included, available for separate purchase).

Technical data:

- Thread: G1/4" BSP; 4.5mm male thread lenght

- Supported tube: 12mm (ID; roughly equalls 7/16" ID)

- Outer diameter of the tube: unlimited

- Outer diameter of a fitting: 19.8mm

- Installed height: 19mm

- Compatible tubing: PVC, EPDM, Norprene, silicone, most types of flexible tube

ROHS 2.0 Compliant!

Please Note:

- This fitting is to be used only with correctly sized tubing!

- Do not use excessive force when attaching fitting barbs using Allen Key 8mm in order to prevent water block damage!

- Use appropriate hose clamp or substitute for securing tubing to the barb!

- This product should NOT be installed with any aluminum Fluid Gaming parts!
