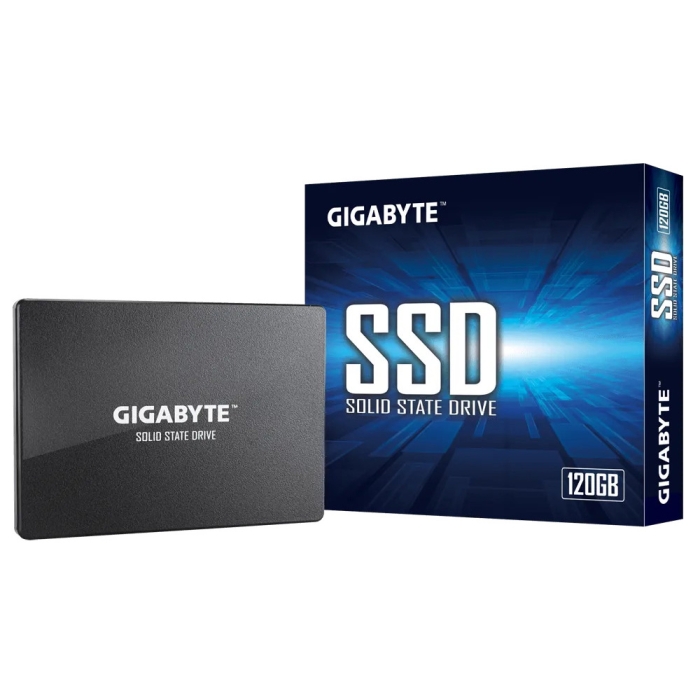

Gigabyte SATA III 2.5" SSD 120GB

SSD Tool Box

The newly updated SSD Tool Box is an application that helps users monitor SSD Status, provides general information such as model name, FW version, health condition, drive optimization and also detects sensor temperature. Moreover, users can clear all the data with the Secure Erase function. You can download the SSD Tool Box from the Support.

Specifications

Interface: SATA 6.0Gb/s

Form Factor: 2‎.5-inch internal SSD

Total Capacity: 1‎20GB

Warranty: Limited 3-year or 75TBW

NAND: NAND Flash

External DDR Cache: N/A

Sequential Read speed: Up to 500 MB/s ; Minimum 350 MB/s

Sequential Write speed: Up to 380 MB/s ; Minimum 280 MB/s

Random Read IOPS: Up to 50k

Random Write IOPS: Up to 60k

Dimension: 6‎9.85 x 7 x 100 mm

Mean time between failure (MTBF): 2‎M hours

Power Consumption (Active): Average: R : 2240mW; W : 2610mW

Power Consumption (Idle): 1‎70mW

Temperature (Operating): 0‎°C to 70°C

Temperature (Storage): -40°C to 85°C

Note:

- Test system configuration: configuration may vary by models, we will choose the latest platform for verification.

- Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark v.5.1.2 and I0meter 1.1.0.

- Speeds based on internal testing. Actual performance may vary.

- TBW (Terabyte Written):Terabytes Written" is the total amount of data that can be written into an SSD before it is likely to fail.

- 1GB = 1 billion bytes. Actual useable capacity may vary.

- 3 years or 75 TBW, whichever comes first.
