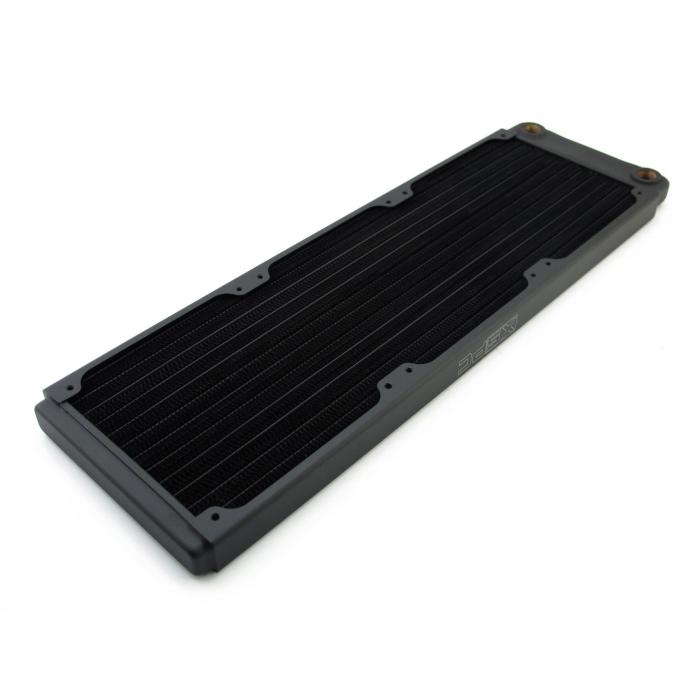

XSPC TX360 Ultrathin Radiator - Black

XSPC TX360 120mm Ultrathin Triple Fan Radiator - Black

×

:

Not a valid Time
This is a required field.

XSPC TX360 120mm Ultrathin Triple Fan Radiator - Black

£80.34 £66.95
  • Copper & brass core
  • H90 Copper tubes, copper fins and brass end tanks
  • Matte black paint finish
  • Dimensions: 398 x 125 x 20.5mm (LxWxH)
  • Weight: ~652g
Availability:
In stock
Only 5 left
SKU
XSPC-TX-360-BLK

XSPC TX360 Ultrathin Single Fan Radiator - Black



The XSPC TX is the world’s thinnest PC radiator. At just over 20mm thick, it's 20% thinner than a standard 120mm fan and over 40% thinner than the EX series radiators.

Despite its size, the TX series offers both excellent performance and low flow restriction. This comes from the high performance copper and brass core, which features welded seam tubes and high density splitter fins. Further enhanced performance from designed fins which protrude past the tubes. This allows a larger cooling surface area without increasing the external dimensions. With 13 tubes and 22 fins per inch it's the highest density core XSPC have ever released, but due to the thinness of the core it still performs with low-speed fans.

The TX series is ideal for any build where space is at a premium.


Characteristics


- Copper and Brass Core

- H90 Copper Tubes, Copper Fins, Brass End Tanks

- Matte Black Paint Finish

- RoHS Compliant

- Dimensions: 125 x 20.5 x 398 mm (WxDxH) +-0.5 mm

- 16 mm Core

- 22 FPI (fins per inch)

- 13 Tubes (13x1.5 mm)

- Weight: ~652 g

- Coolant Capacity:132 ml

- Ports: G1/4″

- Screws: 6-32 UNC

- Fans: 3 x 120 mm (6x with push/pull)

- Supplied 30 mm and 6 mm 6-32 UNC screws


More Information
Is Discontinued No
SKU XSPC-TX-360-BLK
Brand XSPC
UPC/EAN 5060596650022
Write Your Own Review
You're reviewing:XSPC TX360 120mm Ultrathin Triple Fan Radiator - Black
Core Material
Copper & Brass
Finish
Matte Black
Fins per Inch
22
Tubes
13
Ports 2 x G1/4"
Core
16 mm
Screws
6-32 UNC
Volume
132 ml
Radiator Dimensions (L x W x H)
398 x 125 x 20.5 mm
Weight
~652 g
