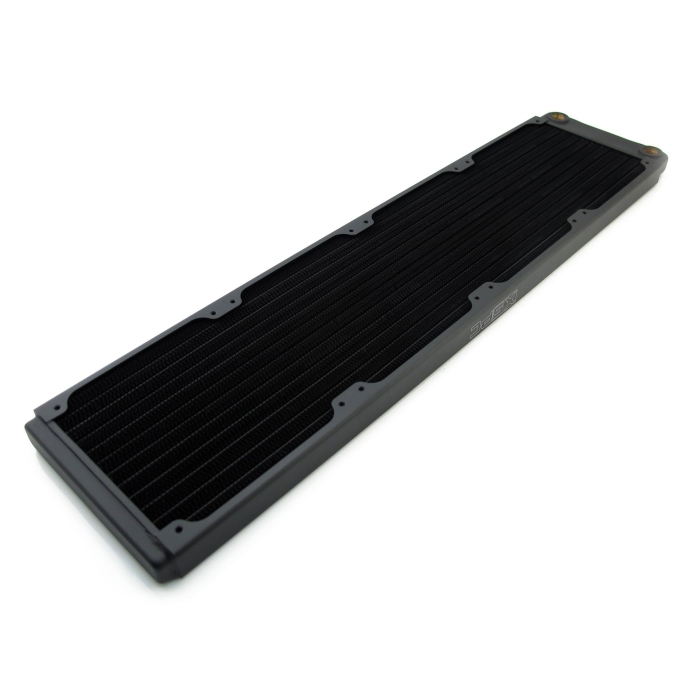

XSPC TX480 Ultrathin Radiator - Black

XSPC TX480 120mm Ultrathin Quad Fan Radiator - Black



Not a valid Time
This is a required field.

XSPC TX480 120mm Ultrathin Quad Fan Radiator - Black

£93.54 £77.95
  • Copper & brass core
  • H90 Copper tubes, copper fins and brass end tanks
  • Matte black paint finish
  • Dimensions: 518 x 125 x 20.5mm (LxWxH)
  • Weight: ~792g
In stock

XSPC TX480 Ultrathin Single Fan Radiator - Black

The XSPC TX is the world’s thinnest PC radiator. At just over 20mm thick, it's 20% thinner than a standard 120mm fan and over 40% thinner than the EX series radiators.

Despite its size, the TX series offers both excellent performance and low flow restriction. This comes from the high performance copper and brass core, which features welded seam tubes and high density splitter fins. Further enhanced performance from designed fins which protrude past the tubes. This allows a larger cooling surface area without increasing the external dimensions. With 13 tubes and 22 fins per inch it's the highest density core XSPC have ever released, but due to the thinness of the core it still performs with low-speed fans.

The TX series is ideal for any build where space is at a premium.


- Copper and Brass Core

- H90 Copper Tubes, Copper Fins, Brass End Tanks

- Matte Black Paint Finish

- RoHS Compliant

- Dimensions: 125 x 20.5 x 518 mm (WxDxH) +-0.5 mm

- 16 mm Core

- 22 FPI (fins per inch)

- 13 Tubes (13x1.5 mm)

- Weight: ~792 g

- Coolant Capacity: 153 ml

- Ports: G1/4″

- Screws: 6-32 UNC

- Fans: 4 x 120 mm (8x with push/pull)

- Supplied 30 mm and 6 mm 6-32 UNC screws

More Information
Is Discontinued No
Brand XSPC
UPC/EAN 5060596650039
Write Your Own Review
You're reviewing:XSPC TX480 120mm Ultrathin Quad Fan Radiator - Black
Core Material
Copper & Brass
Matte Black
Fins per Inch
Ports 2 x G1/4"
16 mm
6-32 UNC
153 ml
Radiator Dimensions (L x W x H)
518 x 125 x 20.5 mm
~792 g
