Maximum Expansion Potential
The DP503 gaming case features an extensive interior and powerful compatibility. 2 x 360mm can be installed in the front & on the top simultaneously.

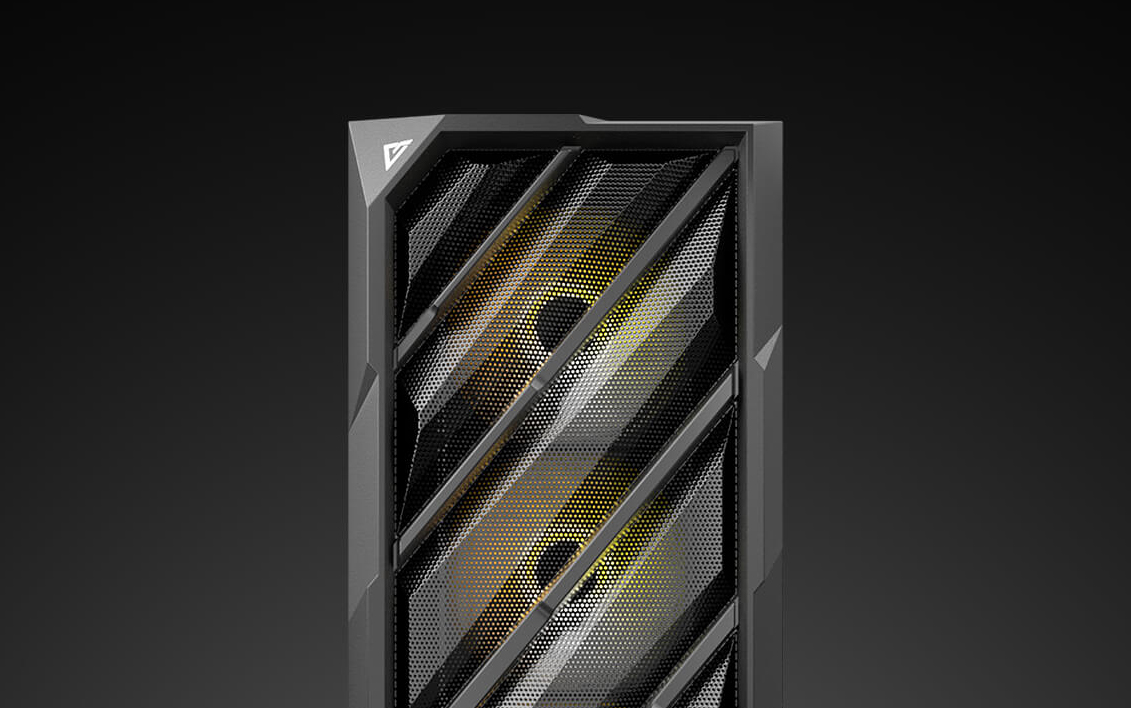

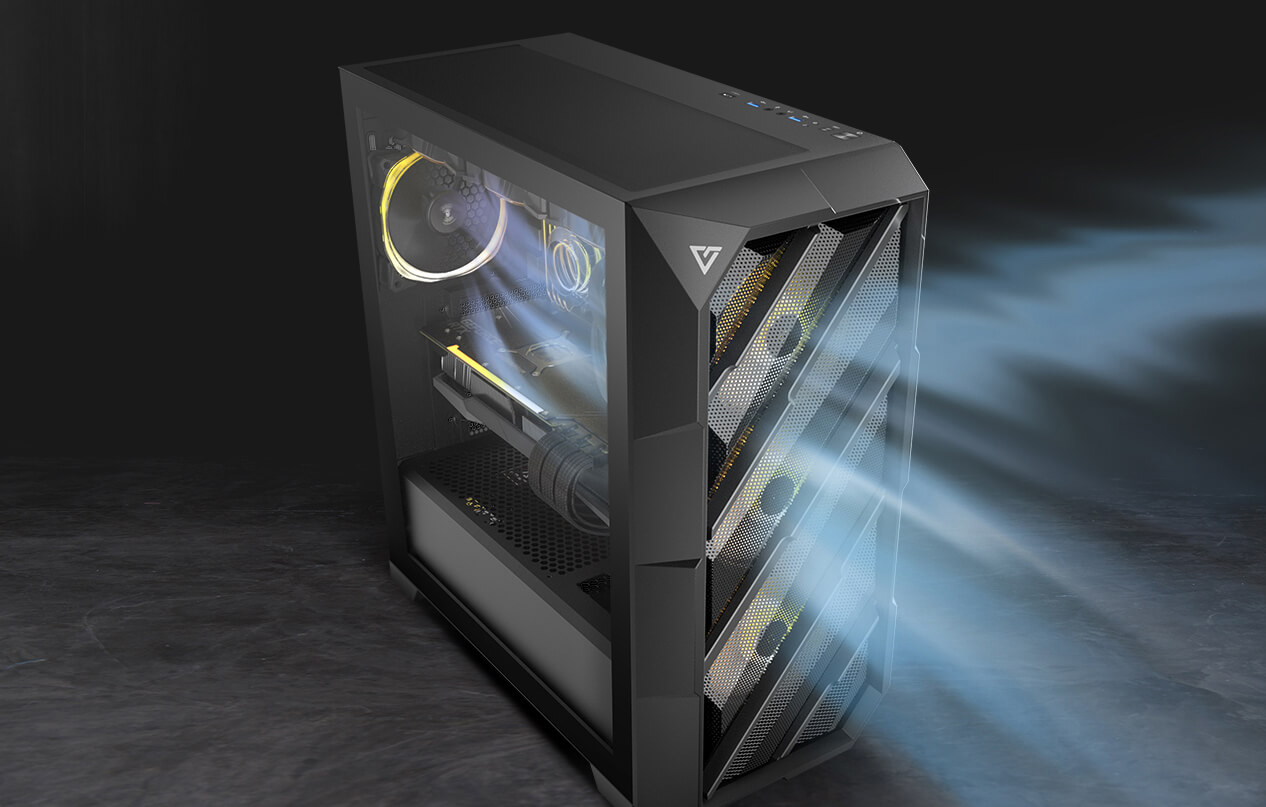

High-Airflow Mesh Front Panel
Comes with a mesh front panel, along with ventilation on the top, at the bottom and in the PSU chamber, which will accelerate the airflow circulation and enhance the cooling performance.
- Massive Mesh Front Panel with Slanted Bar Design.
- The Magnetic Dust Filter on the Top.
- Pull-Out Dust Filter at the Bottom.
Pre-installed at the front for efficient airflow and customizable RGB lighting.
ARGB and PWM Control Hub
The control hub supports up to 6 fans and 6 LED device.
Connect it to your motherboard for 16.8 million possible colours.

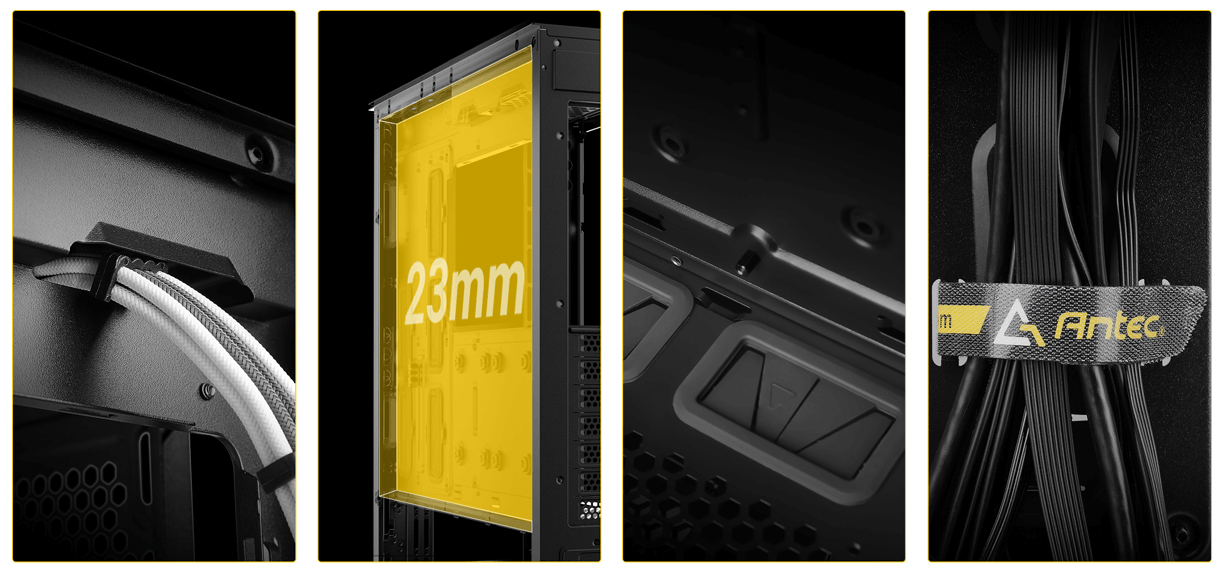

Building a Clean PC is Within Easy Reach
Well-designed cable routing makes wiring easy and simple, with a spacious 23mm of space for cables.
- Cable channels with groove on top for stable routing
- Space for cable management: 23 mm
- 8 x Cable routing grommets included
- 3 x Antec logo cable ties
Easy Installation - Fits Up To 4 Drive Devices
- Snap-in 2.5" drive device for easy mounting.
- Removable hard drive cage.
- Tool-free 3.5" drive tray
TYPE-C 3.2 Gen 2 Ready
Detailed Features
9 Fans Simultaneously
3 x 120mm ARGB fans and a 360 mm radiator can be installed simultaneously in the front interior for better cooling performance.
Unlimited Upgrades
Motherboard support: E-ATX, ATX, Micro-ATX, ITX
CPU Cooler max height: ≤ 170 mm
GPU Max length: ≤ 375 mm
Power supply max length: ≤ 205 mm (with HDD), ≤ 410 mm (without HDD)
| Is Discontinued | No |
|---|---|
| SKU | ANTEC-TOWER-DP503-BLK |
| Brand | Antec |
| UPC/EAN | 0761345810777 |
| Case Specifications |
|
| Dimensions (D x W x H) | 483 x 220 x 492 mm |
| Form Factor | Mid Tower |
| Materials | Steel, Plastic |
| Mainboard Support | E-ATX, ATX, Micro-ATX, ITX |
| Front Access and Controls | Power, LED Control Button, USB 3.0 x 2, Type C 3.2 Gen 2 x 1, Mic x 1, HD-Audio x 1 |
| Side Panel | 4 mm Tempered Glass |
| Drive Bays | |
| Expansion Slots | 7 |
| 3.5"/2.5" (Convertible) | 2/2 |
| 2.5" | 2 |
| Fan Support |
|
| Front | 3 x 120 mm / 3 x 140 mm / 2 x 185 mm |
| Top | 3 x 120 mm / 2 x 140 mm |
| Power Supply Shroud | 2 x 120 mm |
| Rear | 1 x 120 mm |
| Included Fan(s) | 3 x 120 mm ARGB Fans in Front |
| Radiator Support | |
| Front | 120 mm / 140 mm / 240 mm / 280 mm / 360 mm |
| Top | 120 mm / 140 mm / 240 mm / 280 mm / 360 mm |
| Rear | 120 mm |
| Clearance | |
| Max GPU Length | ≤ 375 mm |
| Max CPU Cooler Height | ≤ 170 mm |
| Max PSU Length | ≤ 205 mm (with HDD), ≤ 410 mm (without HDD) |
| PSU Support | ≤ 23 mm |
| Accessories | |
| Fan and LED Control Hub | Yes |
| GPU Holder | Yes |
| Cable Routing Grommets | Yes, 8 pcs |
| Fixed Cable Ties | Yes, 3 pcs |
| Captive Thumb Screws | Yes (Side panels, GPU Holder, PSU Brace) |
| Miscellaneous | |
| Warranty | 2 year |
| Dust Filter | Top / Bottom |
