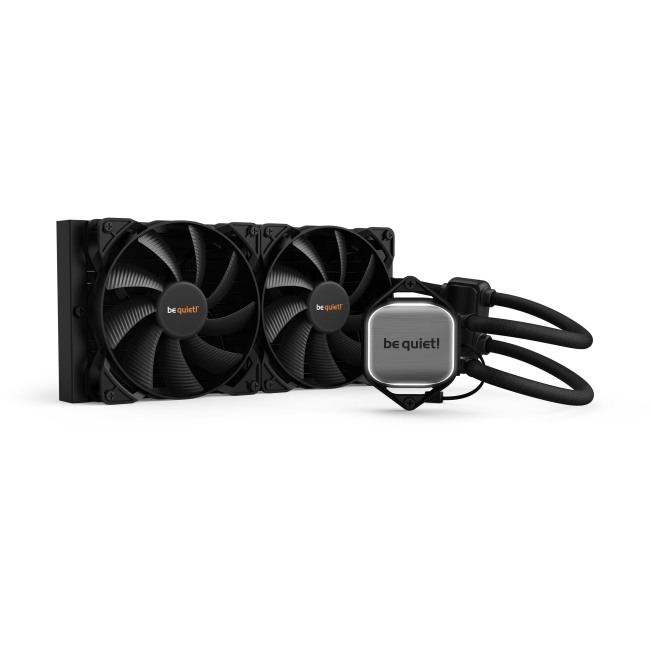

Pure Loop 280mm is the new high-performing and silent All-in-One water cooling unit of be quiet! for price-conscious users without overclocked systems.
- Impressively high cooling performance
- Doubly decoupled pump for quiet operation and minimal vibration
- Pure Wings 2 140mm PWM fan combines quiet operation with high air pressure
- White LED illumination, all-black design and aluminium-style for unmistakable and stylish look
- Easy-to-access refill port and included coolant bottle guarantee a long lifespan
- Flexible sleeved tubes and a convenient mounting ensure easy handling
- Nickel-coated coldplate allows optimum use of liquid metal thermal compound
- 3-year manufacturer’s warranty
Reliable Cooling Power for Sophisticated Applications
With Pure Loop even the most demanding applications can be used reliably. An immense cooling power provides low temperatures even during periods of peak CPU performance.
Smooth and Silent Operation
Thanks to the effective damping the pump causes only minimal noise and vibration. This is the key to guarantee the famously silent be quiet! operation.
Outstanding Reliability and Reduced Noise-Generating Turbulence
The Pure Wings 2 140mm fan provides very quiet operation and high cooling performance. Its 9 airflow-optimised fan blades make the Pure Wings 2 the ideal fan for Pure Loop’s aluminium radiator.
Simplified Refilling Process and A Long Lifespan
The refill port is easy to access which makes refilling safe and comfortable. The included coolant bottle additionally guarantees a long lifespan.
An Unmistakable and Stylish Look
An all-black design in combination with white LED illumination makes for an elegant look. This is further underlined by the aluminium-style cooling block that guarantees the Pure Loop to look good in any system.
Is Discontinued | No |
---|---|
SKU | BQ-AIO-PURELOOP-280-B |
Brand | be quiet! |
UPC/EAN | 4260052187906 |
General Data |
|
Model | Pure Loop 280 mm |
Dimensions Radiator, incl. Fan (H x W x D) | 317 x 140 x 52 mm |
Dimensions Cooling Block (H x W x D) | 94.5 x 83 x 42 mm |
Total Weight | 1.22 kg |
Socket Compatibility Intel | 1700 / 1200 / 2066 / 1150 / 1151 / 1155 / 2011(-3) Square ILM |
Socket Compatibility AMD | AM5 / AM4 |
Noise level @ 50% / 75% /100% RPM | 20.3 / 29 / 35.1 dB (A) |
Number of Fans | 2 |
Lighting Connector | 3-pin 12V |
Tube Length | 400 mm |
Refill Port | ✓ |
Pump Specifications |
|
Pump Speed | 5500 RPM |
Pump Adjustable | - |
Pump Connector | 3-pin |
Radiator Specifications |
|
Dimensions (H x W x D) | 317 x 140 x 27 |
Radiator Material / Finish | Aluminium / Black Spray Painted |
Base Material / Finish | Copper / Nickel Plated |
Fan Specifications |
|
Fan Model | 2 x Pure Wings 2 140mm PWM High-Speed |
Fan Dimensions | 140 x 140 x 25 mm |
Speed @ 100% PWM | 1600 RPM |
Bearing Technology | Rifle |
Motor Technology | 4-Pole Fan Motor |
Rated Voltage | 12 V |
Input Current | 0.5 A |
Input Power | 6.0 W |
Connector | 4-pin PWM |
Cable Length | 420 mm |
Lifespan | 80,000 h / 25°C |
Accessories |
|
Thermal Grease (Type) | Included |
Mounting Set | Intel & AMD |
Adapter Cables | SATA-to-3-pin |
Bottle of Coolant | ✓ / 100 ml |
ARGB Controller with SATA Cable | - |
ARGB-PWM-Hub | - |
User Manual Languages | CN, DE, EN, ES, FR, JP, PL, RU, TW |
Safety Certifications |
|
Approvals | CE, KCC, UL |
Environmental Directives |
|
RoHs | ✓ |
WEEE | ✓ |
Triman | ✓ |
Service |
|
Warranty | 3 Years |
