MasterBox TD500 Mesh V2’s iconic polygonal design keeps your system looking unique and your gaming sessions streamlined.
Polygonal FineMesh Front Panel
Three CF120 ARGB Fans Included
USB 3.2 Gen 2 Type C Support
Tool-Free Crystalline TG Side Panel
PSU Shroud With Removable Cover
ARGB Controller Included
Removable Top Panel
Removable HDD cage
Polygonal FineMesh features a 3D contour and is also capable of simultaneously providing high airflow and dust filtration.

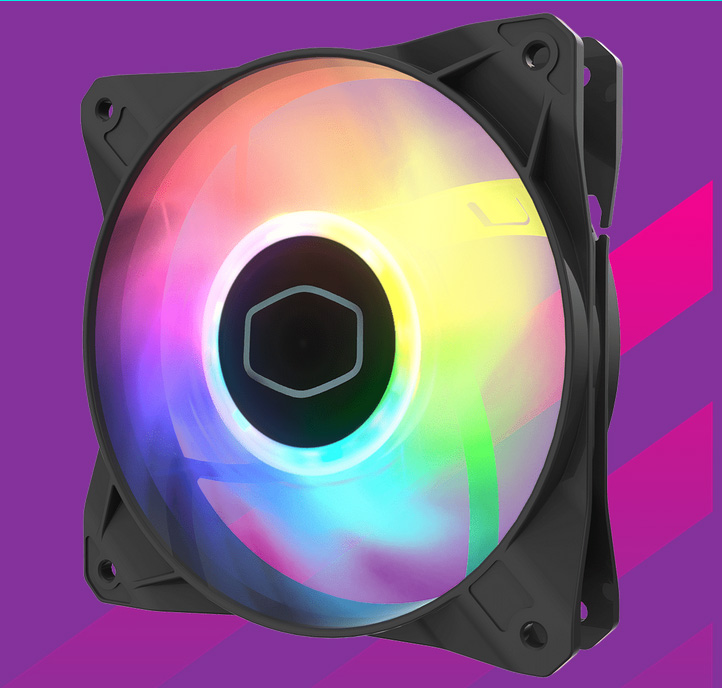

Pre-installed CF120 ARGB fans provide ample airflow, ensuring low temperatures, high performance, and eye-catching aesthetics during even the most intense gaming sessions.
USB 3.2 Gen 2 Type C port built into the I/O panel allows multi-purpose, streamlined data transmission.

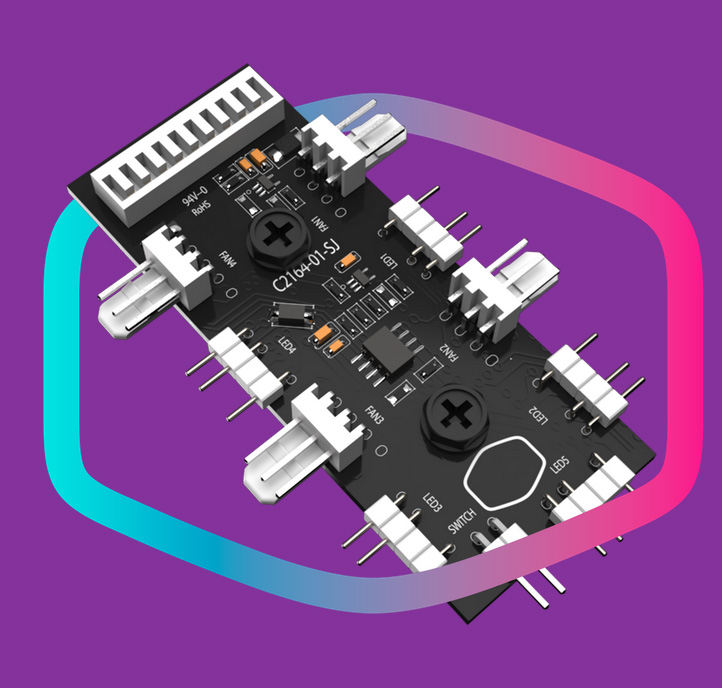

The included controlller allows users to manage systems lighting independently from the hardware configuration and provides the user with 4 additional fan headers in case of need.
The top panel is entirely removable for improved access during assembly and ease of mounting of cooling solutions.
Featuring a crystalline tempered glass side panel, completely toolless for quick access to the internals.

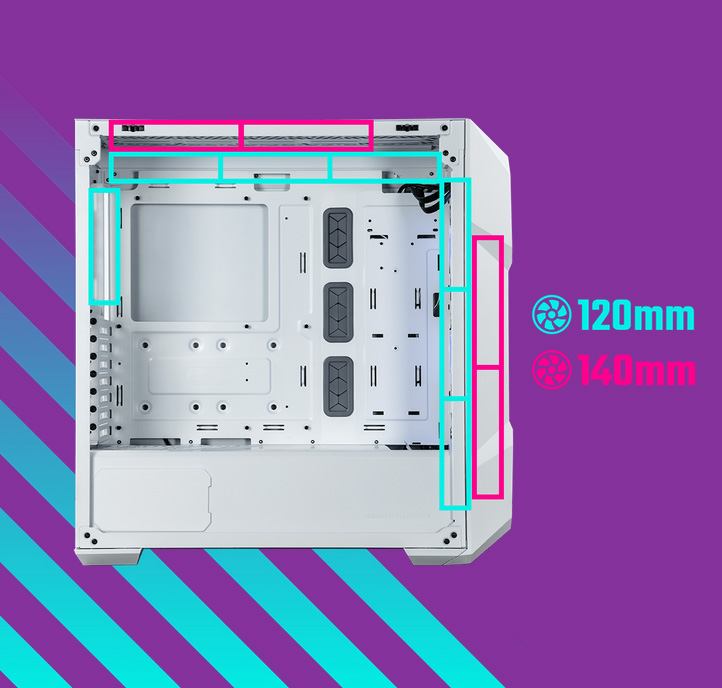

Support for up to seven 120mm fans and 360mm front and top radiator support ensure that performance is not compromised.
MasterBox TD500 Mesh V2’s removable PSU cover allows users to freely decide whether to showcase or keep their PSUs hidden.
MasterBox TD500Mesh V2 is natively compatible with ITX, M-ATX and ATX motherboards.
E-ATX motherboards, such as SSI-CEB models, are compatible with dimensions up to 12" x 10.7".
|Materials - Exterior||Steel, Mesh, Plastic|
|Materials - Left Side Panel||Tempered Glass|
|Dimensions (L x W x H)||499 x 210 x 500mm (incl. Protrusions), 430 x 210 x 477mm (excl. Protrusions)|
|Volume||50L (excl. Protrusions)|
|Motherboard Support||Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*up to 12" x 10.7" motherboards, may impact cable management feature)|
|3.5" Drive Bays||2|
|2.5" Drive Bays||3|
|I/O Panel - USB Ports||2x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 Type C|
|I/O Panel - Audio In / Out||1x Audio Jack|
|I/O Panel - Other||1x ARGB Fan Hub|
|Pre-installed Fans - Front||3x 120mm CF120 ARGB|
|Fan Support - Top||3x 120mm, 2x 140mm|
|Fan Support - Front||3x 120mm, 2x 140mm|
|Fan Support - Rear||1x 120mm|
|Radiator Support - Top||120mm, 140mm, 240mm, 280mm, 360mm, (recommended maximum thickness -55mm)|
|Radiator Support - Front||120mm, 140mm, 240mm, 280mm, 360mm|
|Radiator Support - Rear||120mm|
|Clearance - CPU Cooler||165mm/6.49"|
|Clearance - PSU||200mm, (Recommended up to 170mm)|
|Clearance - GFX||410mm / 16.14"|
|Cable Routing - Behind Motherboard Tray||19mm / 0.74"|
|Dust Filters||Front, Top, Bottom|
|Power Supply Support||Bottom Mount, ATX|
