HAF 700 EVO unveils a new era of thermal efficiency through unique features designed to transcend the standards of contemporary cooling solutions.
Rediscover PC DIY: a form of entertainment, a polished skillset, an exquisite art form, and a way of living.
The HAF 700 EVO is capable of housing up to SSI-EEB motherboards (E-ATX), as well as any sized graphics cards in BOTH horizontal and vertical orientations.
Unparalleled Options for Custom Cooling
480mm: Side Panel*1
360mm: Front Panel*1 / Bottom Panel *1 / Top Panel*2
240mm: Rear Panel *1
Two rotatable radiator/fan brackets included out of the box for showcasing cooling components at unique angles.
The unique removable top panel design allows you to effortlessly install, reach and maintain cooling components such as fans and radiators even in builds with complex custom cooling systems.
HAF 700 EVO comes with dual exclusive 200mm SickleFlow PWM "Performance Edition" fans tailored to strike a balance between performance potential and noise levels.

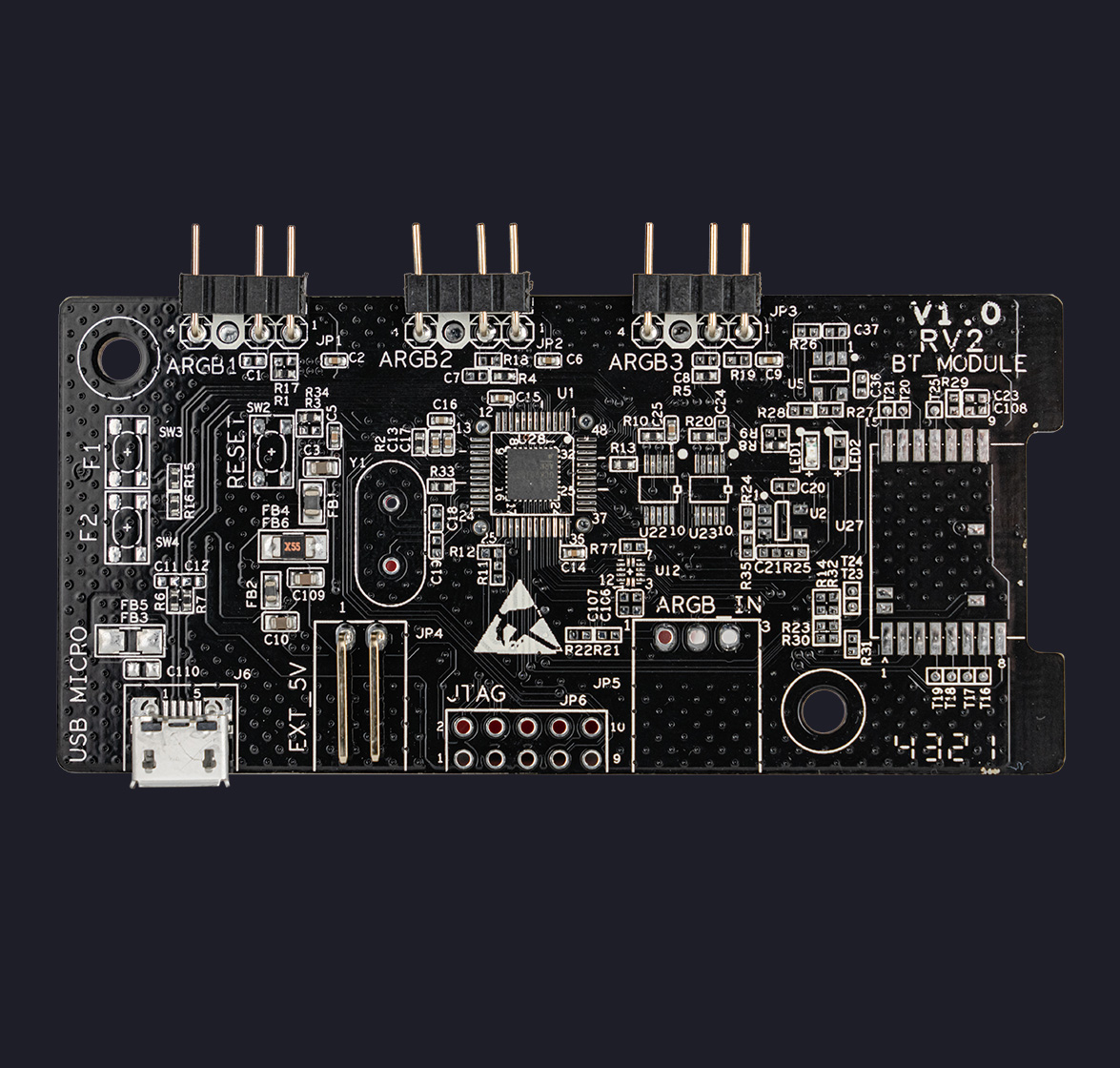

Featuring a fully integrated PWM/ARGB hub for effortless cable management and simplified control over ARGB effects and PWM fan speeds.
ARGB Gen2 technology allows users to explore full range customization down to the lighting effecting of each individual LED, while remaining compatible with third party devices.
Monitor system and game stats in real time or showcase your favorite video and images.
Better yet, customize and create a setup that is truly unique by connecting to MasterPlus+.
Sleek, premium tempered glass or performant mesh? Why choose?
Thick, robust ARGB tempered glass Intake Blades create unique, futuristic lighting effects while maintaining the thermal efficiency and performance of mesh that you love.
HAF 700 EVO’s structure segregates non heat sensitive components so heat dissipation can be targeted towards heat sensitive components at an overall higher efficiency.
An included vertical graphics card holder with PCIe 4.0 riser cable grant users the flexibility of choice in aesthetic display and airflow performance.
Tool-less Vertical GPU Mounting - No more fiddling with screws! HAF 700 EVO features a unique clamping mechanism that allows users to install, remove, and upgrade graphics cards without the need to use any tools.
Tool-less PSU Mount - To install PSUs, simply slide the power supply in place and secure it with the two included thumbscrews on the rear end of the case. No tools, no hassle.
Tool-less HDD Cage - The rear chambers includes a tool-less, swiveling drive cage that allows users to quickly access drives with ease.
Tool-less MultiFunction Brackets (HDDs, SSDs, Pumps, Reservoirs) - Multifunction, repositionable brackets can be used to mount SSDs, HDDs, or pumps/reservoirs for liquid cooling.
…Because what’s the point of owning a flagship case without having a bit of fun?
The Infinity Mirror allows you to turn extra clearance in the build into your personal Hall of Fame.
|Exterior Colour||Titanium Grey|
|Materials - Exterior||Mesh, Steel, Plastic|
|Materials - Left Side Panel||Tempered Glass, Steel|
|Dimensions (L x W x H)||556 x 279 x 540 mm (Body Size), 666 x 291 x 626 mm (incl. Protrusions)|
|Motherboard Support||Mini ITX, Micro ATX, ATX, E-ATX, SSI CEB, SSI EEB|
|5.25" Drive Bays||N/A|
|2.5" / 3.5" Drive Bays (Combo)||12|
|2.5" Drive Bays||12|
|I/O Panel - USB Ports||1 x USB 3.2 Gen 2 Type C, 4 x USB 3.2 Gen 1 (3.0)|
|I/O Panel - Audio In / Out||1 x 3.5mm 4 Poles Audio Jack, 1 x 3.5mm Mic Jack|
|I/O Panel - Other||1 x LED Controller A1 (ARGB Gen 2), 1 x ARGB/PWM Hub|
|Pre-installed Fans - Front||2 x SickleFlow PWM Performance Ed. 200 mm|
|Pre-installed Fans - Rear||2 x SickleFlow PWM ARGB 120 mm|
|Pre-installed Fans - Bottom||1 x SickleFlow PWM ARGB 120 mm|
|Fan Support - Top||2 x 200 mm, 3x 140 mm, 6x 12 0mm (Remove 480 mm bracket)|
|Fan Support - Front||2 x 200 mm, 3 x 120/140 mm|
|Fan Support - Rear||2 x 120 mm|
|Fan Support - Bottom||3 x 120/140 mm|
|Fan Support - Side||4 x 120 mm / 3x 140 mm|
|Radiator Support - Top||Up to 2 x 360 mm / 1 x 420 mm|
|Radiator Support - Front||Up to 420/360 mm|
|Radiator Support - Rear||Up to 240 mm|
|Radiator Support - Bottom||Up to 420/360 mm|
|Radiator Support - Side||Up to 480/420 mm|
|Clearance - CPU Cooler||166 mm / 6.53 inch|
|Clearance - PSU||200 mm / 7.87"|
|Clearance - GFX||490 mm|
|Cable Routing - Behind Motherboard Tray||90-101 mm|
|Included Accessories||Vertical Graphics Card Holder V3 (Include 165 mm PCIe 4.0 Riser Cable)
Dust Filters: Front, Bottom, Side
|Power Supply Support||Bottom Mount, ATX|
|Note||For regular 30 mm thick radiators, for thicker please reference user manual.|
