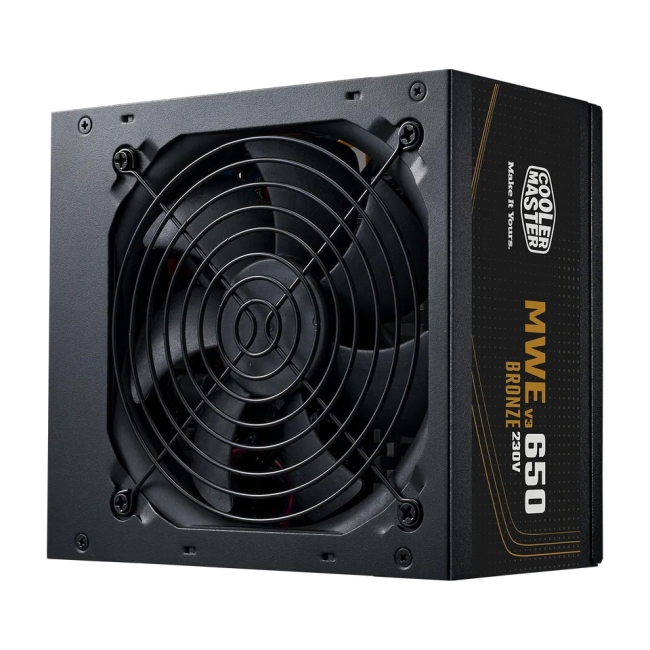

Cooler Master presents the MWE Bronze V3 230V, the upgraded version of the MWE Bronze featuring ATX 3.1 support, high temperature resilience, a smart DC-to-DC + LLC circuit design, a quiet HDB fan, 80 Plus Bronze efficiency, an embossed cable, and a 5-year warranty.
Compliant with ATX 3.1 to fully support a peak power 1.5 times higher than the rated maximum wattage, this unit is ideal for use with the 40 series GPUs.
An embossed cable texture provides a softer and overall improved grip with a pleasing aesthetic.
A hydrodynamic bearing fan delivers long-lasting quiet and effective cooling.
The MWE Bronze V3 230V is certified to achieve more than 88% efficiency at typical loads.
A 40°C operating temperature allows for pushing your machine to the limits.
| Is Discontinued | No |
|---|---|
| SKU | CM-PSUPPLY-MWE-BRONZE-V3-650-230V-B |
| Brand | Cooler Master |
| UPC/EAN | 4719512145210 |
| Model | MPE-6501-ACABW-3B |
| ATX Version | ATX 12V Ver. 3.1 |
| PFC | Active PFC |
| Input Voltage | 200-240 V |
| Input Current | 5 A |
| Input Frequency | 50-60 Hz |
| Dimensions (L x W x H) | 140 x 150 x 86 mm / 5.5 x 5.9 x 3.4 inch |
| Fan Size | 120 mm |
| Fan Bearing | HDB |
| Efficiency | >88% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Bronze EU 230V |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0-40°C |
| Power Good Signal | 100 - 150 ms |
| Hold Up Time | >16 ms |
| MTBF | >100,000 Hours |
| Protections | UVP / OVP / OPP / OTP / SCP |
| Regulatory | TUV, CE, FCC, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (based on region's request.) |
| ATX 24 Pin Connectors | 1 |
| EPS 8 Pin / 4+4 Pin Connectors | 2 |
| SATA Connectors | 6 |
| Peripheral 4 Pin Connectors | 3 |
| PCI-e 6+2 Pin Connectors | 4 |
| Warranty | 5 Years |
| Series | MWE Bronze series |
| Category | 500 to 750 W |
| Modular | Non Modular |
| 80 Plus Efficiency | Bronze |
| Form Factor | ATX |
| Watts | 650 W |
