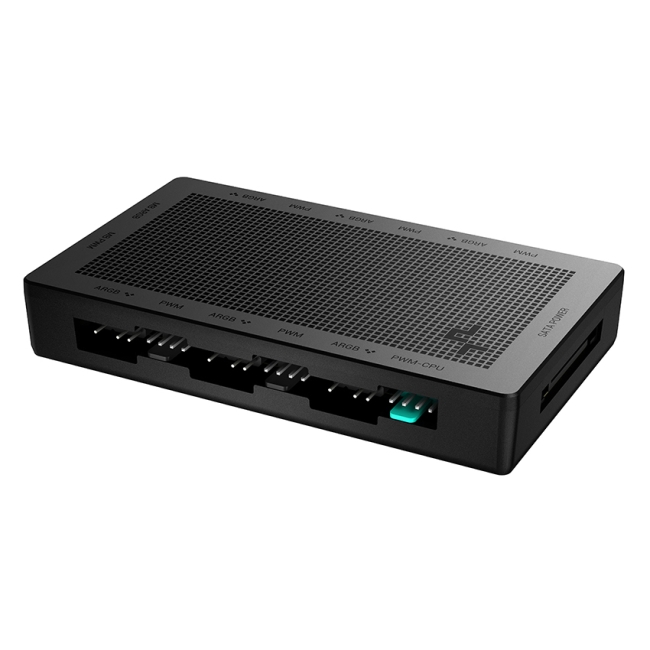

The DeepCool SC790 2-in-1 PWM & RGB hub provides fan and lighting control for up to 6 total PWM ARGB fans simultaneously while occupying minimal headers on a motherboard.
The SC790 connects to a 3-pin 5V ARGB header and 4-pin PWM header on a motherboard and extends their signal to connect up to 6 PWM ARGB fans for total synchronization. The included SATA interface ensures stable continuous power for all connected devices.
The compact and sturdy case is also magnetic, allowing it to be conveniently tucked away behind the motherboard tray or positioned anywhere else.
- Supports ASUS Aura, GIGABYTE Fusion, MSI Mystic Light, and ASRock Polychrome.
- This product is NOT compatible with 12V 4-Pin RGB devices.
| Is Discontinued | No |
|---|---|
| SKU | DC-HUB-SC790 |
| Brand | DeepCool |
| UPC/EAN | 6933412796480 |
| Product Dimension | 102 × 60 × 17 mm |
| Net Weight | 69 g |
| Port Type | ARGB 3-Pin & PWM 4-Pin |
| Fan Ports | 6 Ports x 4-Pin PWM |
| Length of Fan Connector cable | 24 AWG 500 mm |
| Fan Rated Voltage | 12 V DC |
| Fan Rated Current | 2.0 A (1Port) / Total 4.5 A (6Ports) |
| RGB Ports | 6 Ports x 3-Pin Addressable RGB |
| Length of ARGB Connector cable | 24 AWG 538 mm (Asus Asrock MSI) +50 mm (Gigabyte) |
| RGB Rated Voltage | 5 V DC |
| RGB Safety Current | 2.0 A (1Port) / Total 4.5 A (6Ports) |
| Power Connector | SATA Power |
| Power Safety Current | 4.5 A Max |
| Mounting Method | Magnetic |
| Product Colour | Black |
